Automatic Flat paper Handle Pasting Machine
DCZB-888
1
The flat paper handle pasting machine is intended to supplement the paper bag machines (without handles). It can automatically make paper handles with flat ends and then stick the handles to bags to make paper bags with handles in line.
Quantity
Automatic flat paper handle pasting machine
Technical data:
| Overalldimension | L7000*W1600*H1500mm |
| Motor brand | Long bang geared motor |
| Totalpower | 10KW，50HZ |
| Servo motor brand | Siemens |
| Servo motor power | 750W one group |
| PIC programming brand | Siemens |
| Hot melt machine brand | Huangshang Taiwan |
| Mechanical arm | HIWIN Taiwan |
| Handle Spacing | 84mm Fixed |
| Paper Rope Width | 12mm |
| Paper Rope Height | 100mm |
| Paper Width | 40mm |
| Paper Length | 152mm |
| Paper Rope Length | 352mm |
| Paper thickness | 100-130g |
| Bag width | 250-450mm |
| Bag height | 250-450mm |
| Top opening size over 130mm | (Bag Width minus the width of folding ) |
| Production speed | 30-35pcs/min |

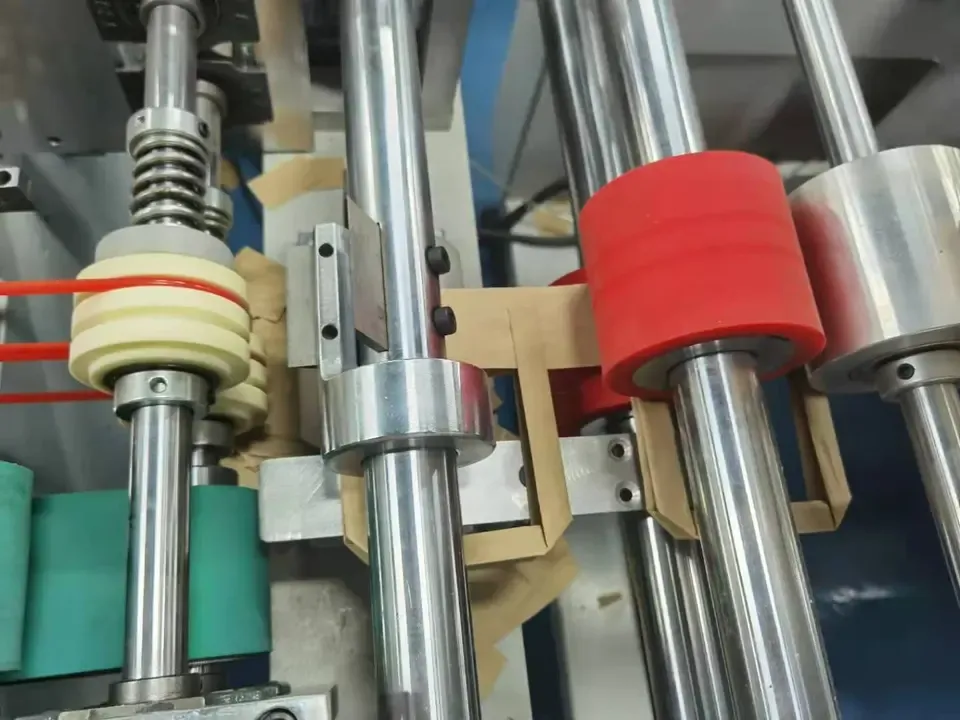

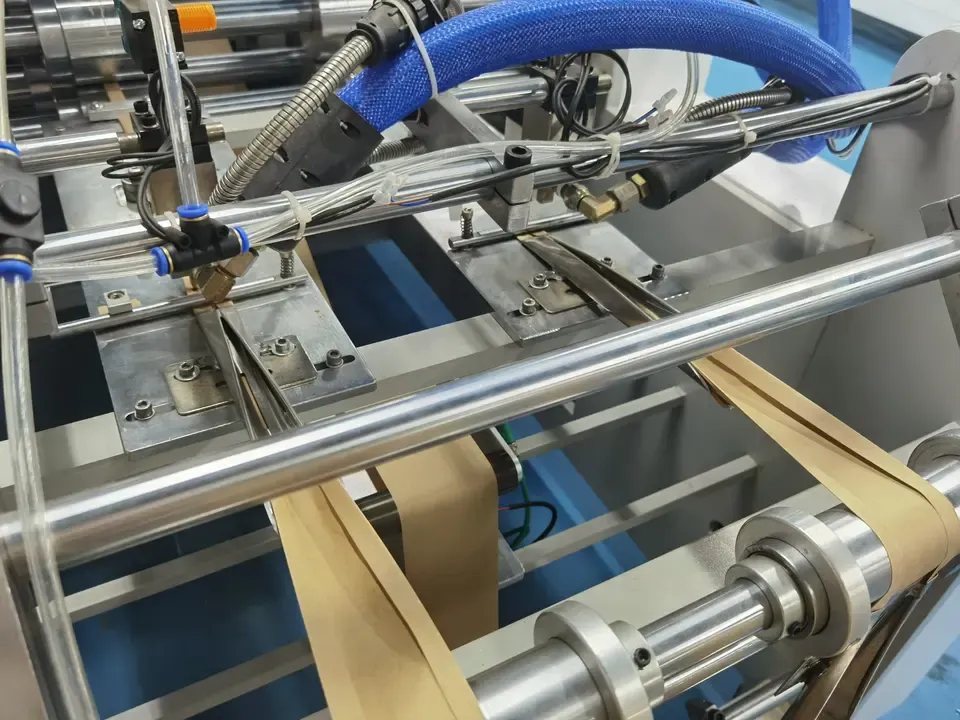

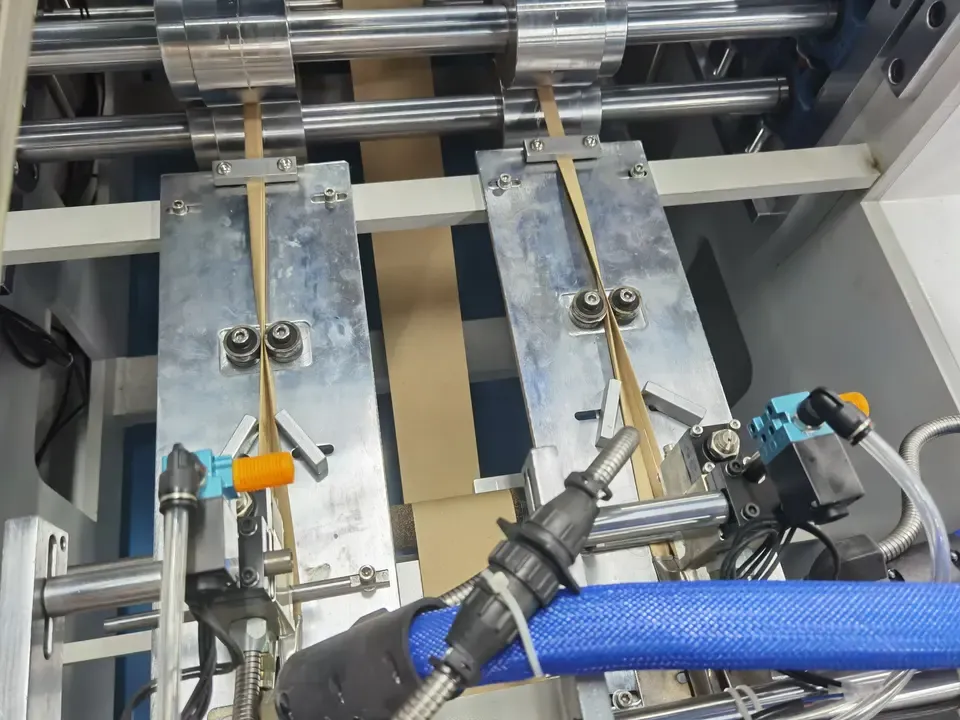

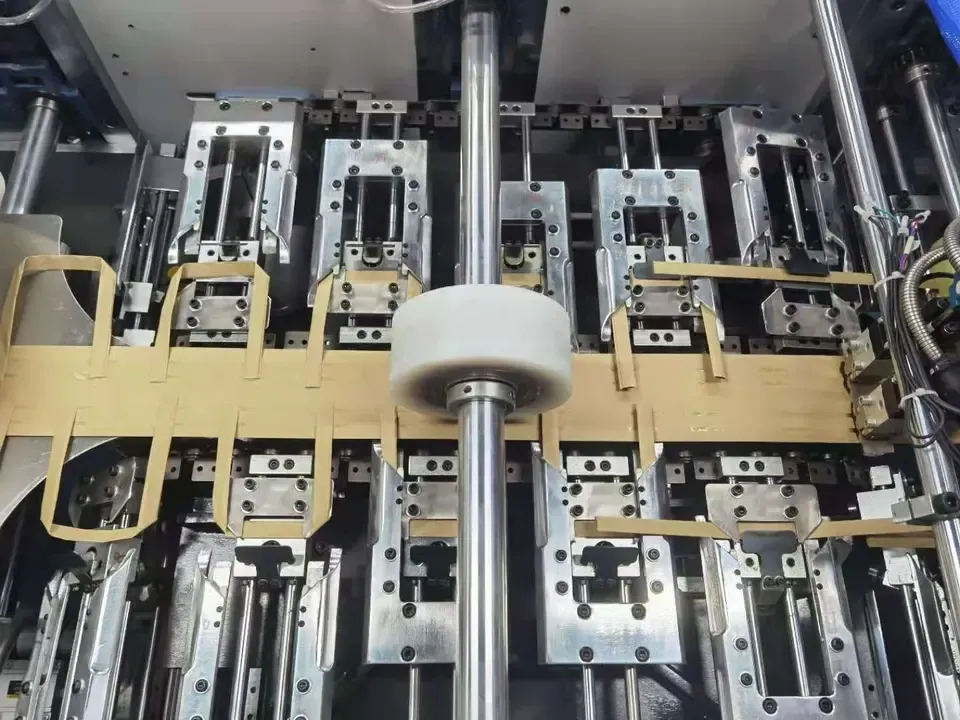

It supporting paper bag machines without handle，Through a complex process, it makes four cutter rolls of paper which have been cut into flat rope and flat handle once shaping, It can produce the flat paper handle on line, and stick the handle on the bag on line too.the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
Machine packaging dimensions
| Name | Overalldimension（With the cases） | Gross Weight |
| MAIN MACHINE | 3400*1500*2000mm | 1000kg |
| MATERIAL HOLDING FRAME | 2300*1100*2000mm | 3000kg |
| Pasting unit | 2250*1250*1650mm | 800kg |
| Control box | 1050*650*1350mm | 100kg |
