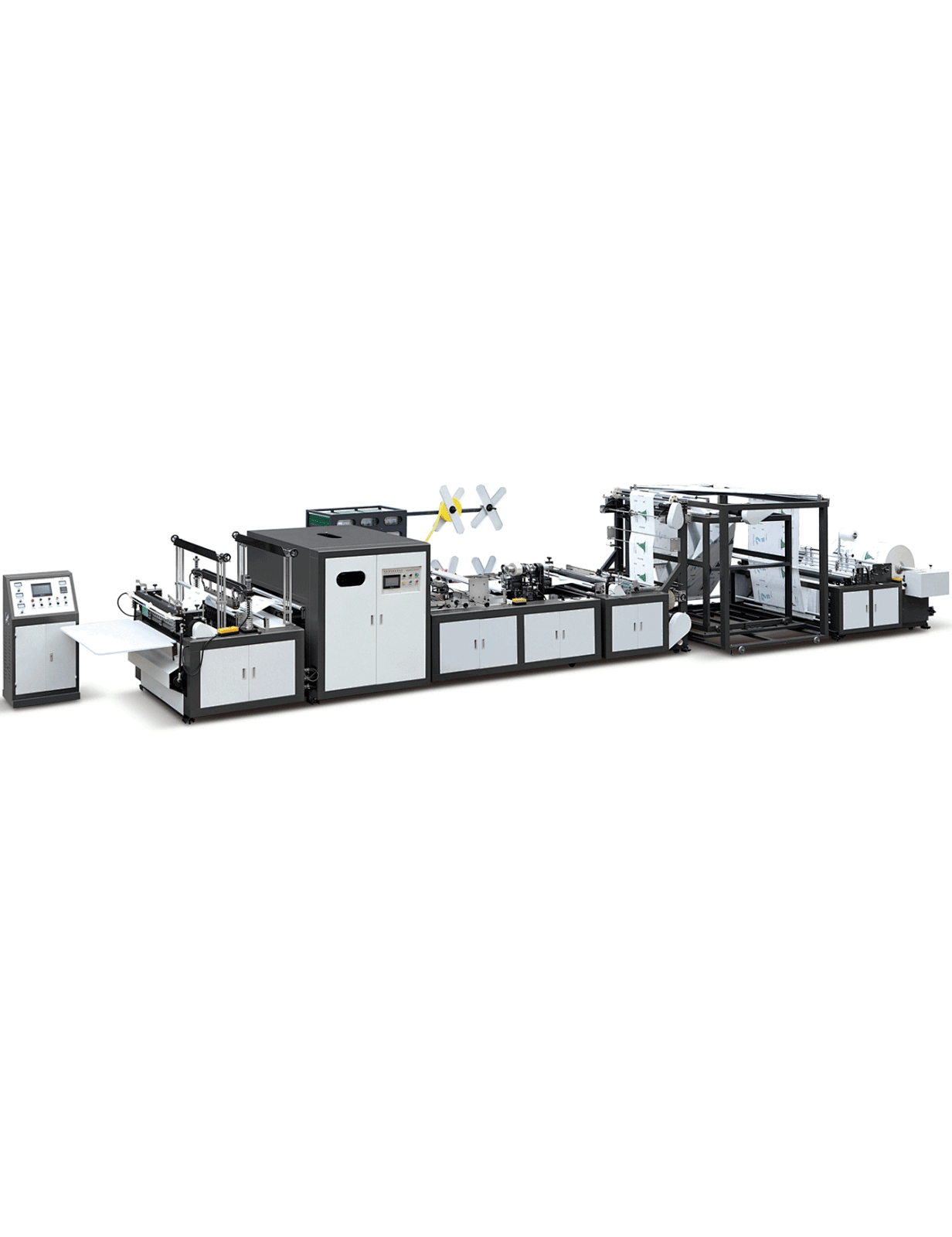

Fully Automatic Non Woven Bag Making Machine

Model NO. DCWZ-XB700/XB800

Minimum order quantity: 1

1. Fully automatic non woven bag making machine, Roll non woven fabric as material, Auto feeding, Folding, Welding, Slitting, Loop handle attaching, Collecting. Save man power.
2. Super sonic welding, Strong and durable. Maximize the load-bearing capacity.
3. High Speed, up to 100pcs / minute.
4. Reliability and Stability, 23 years manufacturing experiences, All parts used are run in over time, eliminating many unreliable or inappropriate suppliers.
5. Our after-sales service is very simple: responsibility + qualified team.

Quantity

1. Feature
Fully Automatic Non Woven Bag Making Machine:

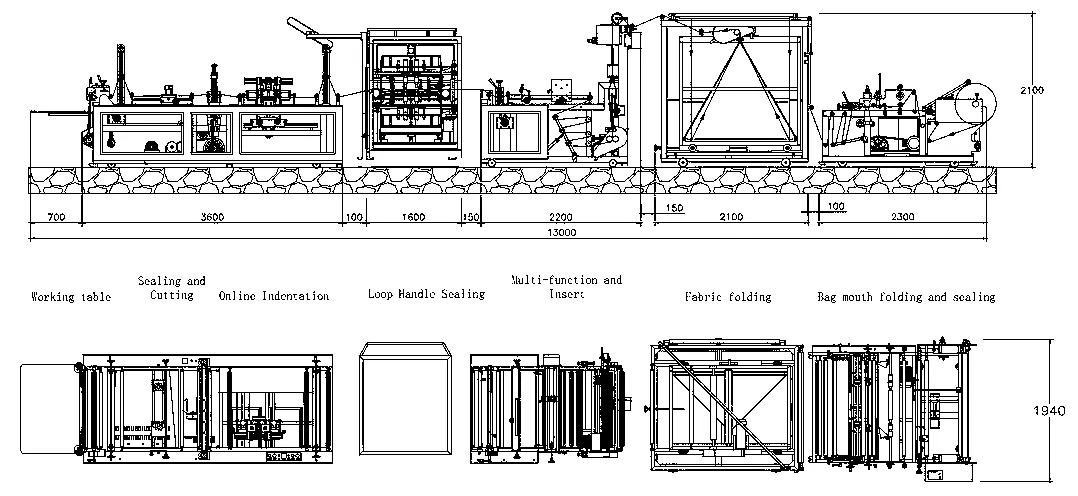

Raw material auto folding -> Bag month folding -> Thermal bonding -> Side folding -> Bottom sealing ->Bottom edge cut -> Online impression -> Loop handle fix -> Thermal bonding -> Bag cut ->Collection

It make box type non woven bag with loop handle automatically, And also can make other different kinds like: flat bag, normal handle bag, vest bag, rope wearing bag, or laminated.
Touchscreen controller, Enable the adjustment of size and loop handle easily.

2.Machine Technical Data

SN	Item	DCWZ-XB700	DCWZ-XB800
1	Roller width	1250mm	1450mm
2	Bag making speed	40-100pcs/min	40-100pcs/min
3	Bag length	100-800mm	100-800mm
4	Bag Height	200-580mm	200-680mm
5	Max Gusset	180mm	180mm
6	Power supply	220V 50Hz	220V 50Hz
7	Total power	22KW	22KW
8	Rated power	22KW	22KW
9	Overall size	L 12000* W 2600* H 2000mm	L 12000* W 2600* H 2000mm
10	Weight of Machine	4100KGS (40HQ*1)	4100KGS (40HQ*1)
11	Handle length	380-600mm	380-600mm
12	Handle width	25-30mm	25-30mm

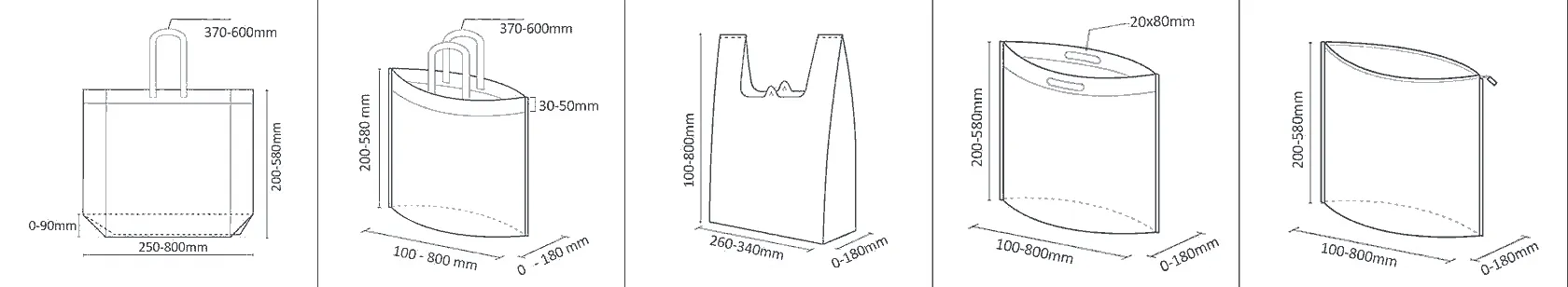

3. Bags it can make:

i. Box bag
ii. Toti Version non woven bag
iii. D-cut bag
iv. Draw strain bag
v. U-cut or T-shirt bag

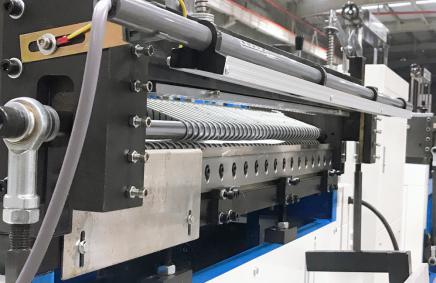

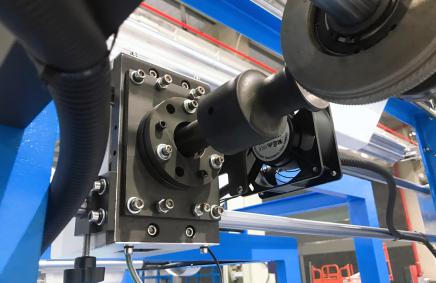

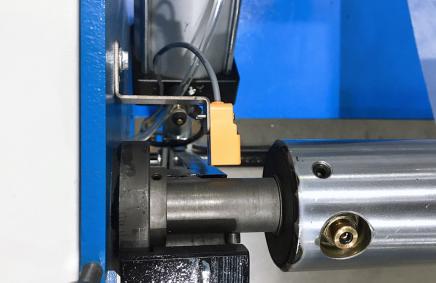

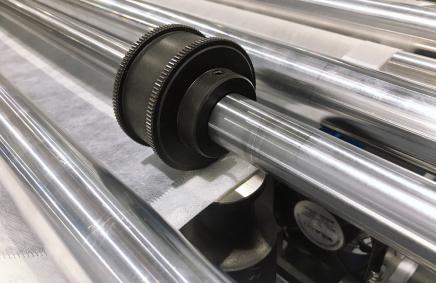

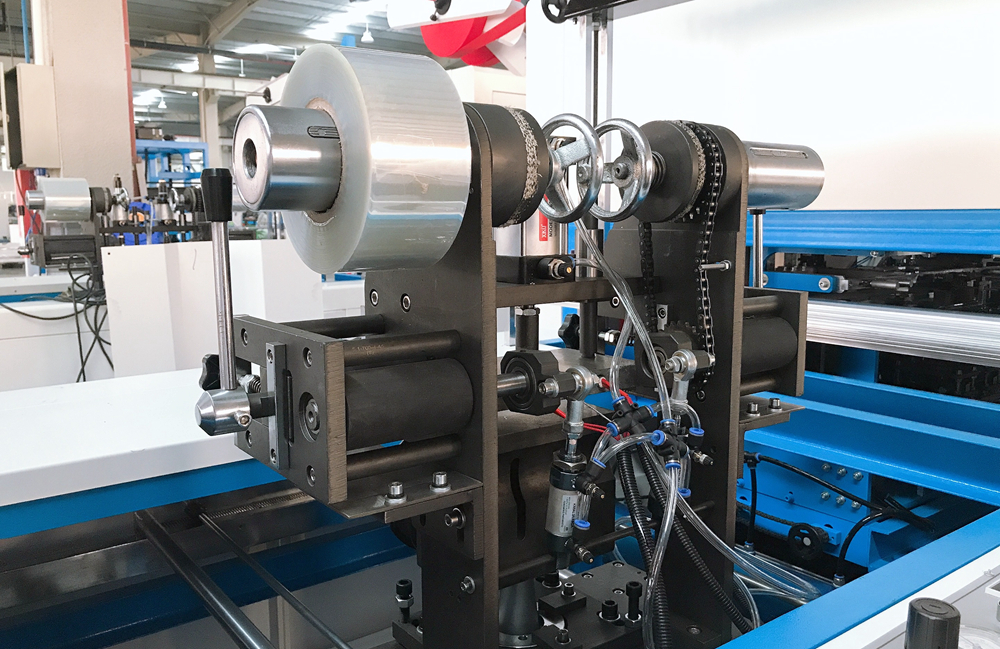

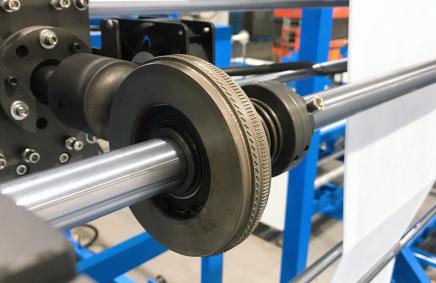

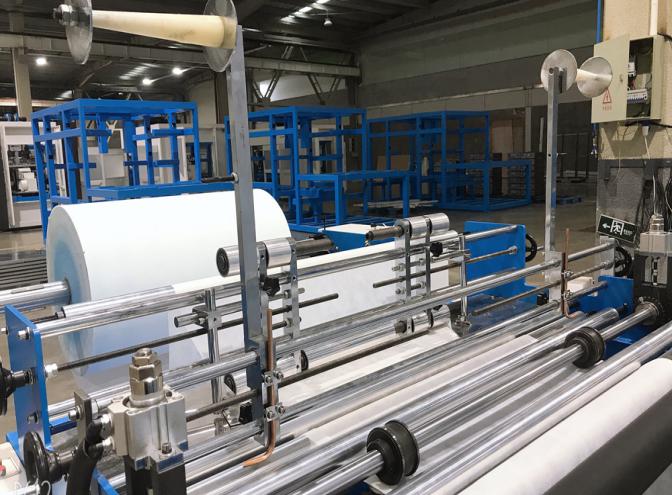

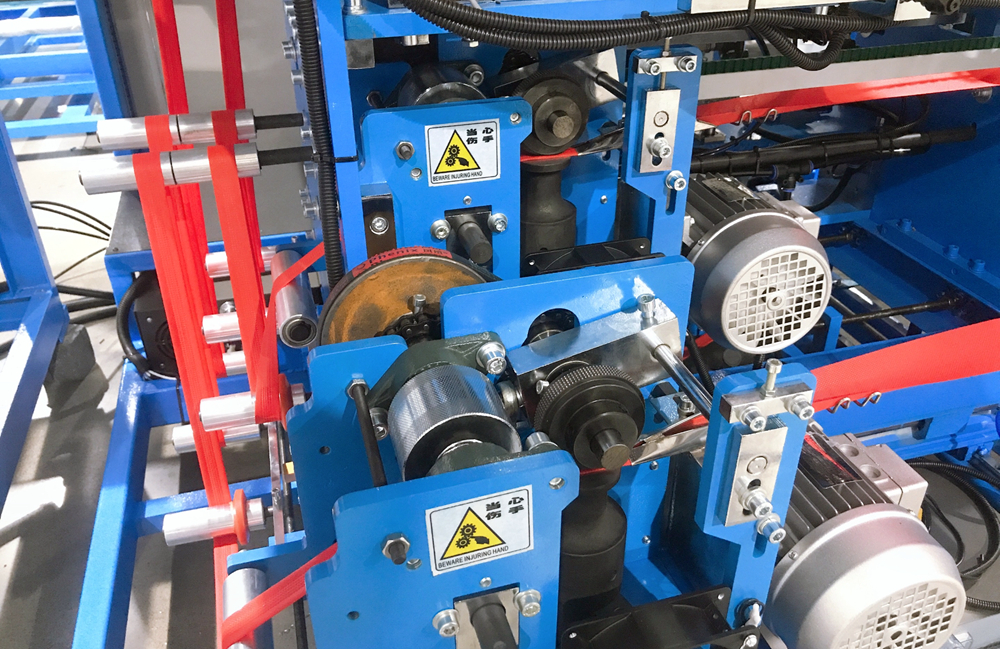

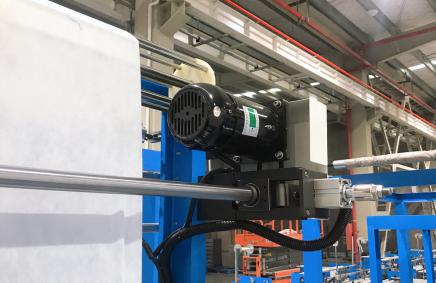

4. Mechanical Details:
