Adjustable roll to square bottom paper bag making machine
DCZZ-B220 / B330 / B400 / B550
1
Tinuo automatic square bottom paper bag machine for bulk production of paper bags for food ; underwear or clothing.
MITSUBISHI Touch Screen Interface; Motion Control; Servo Motor
SICK Photoelectric Correction.

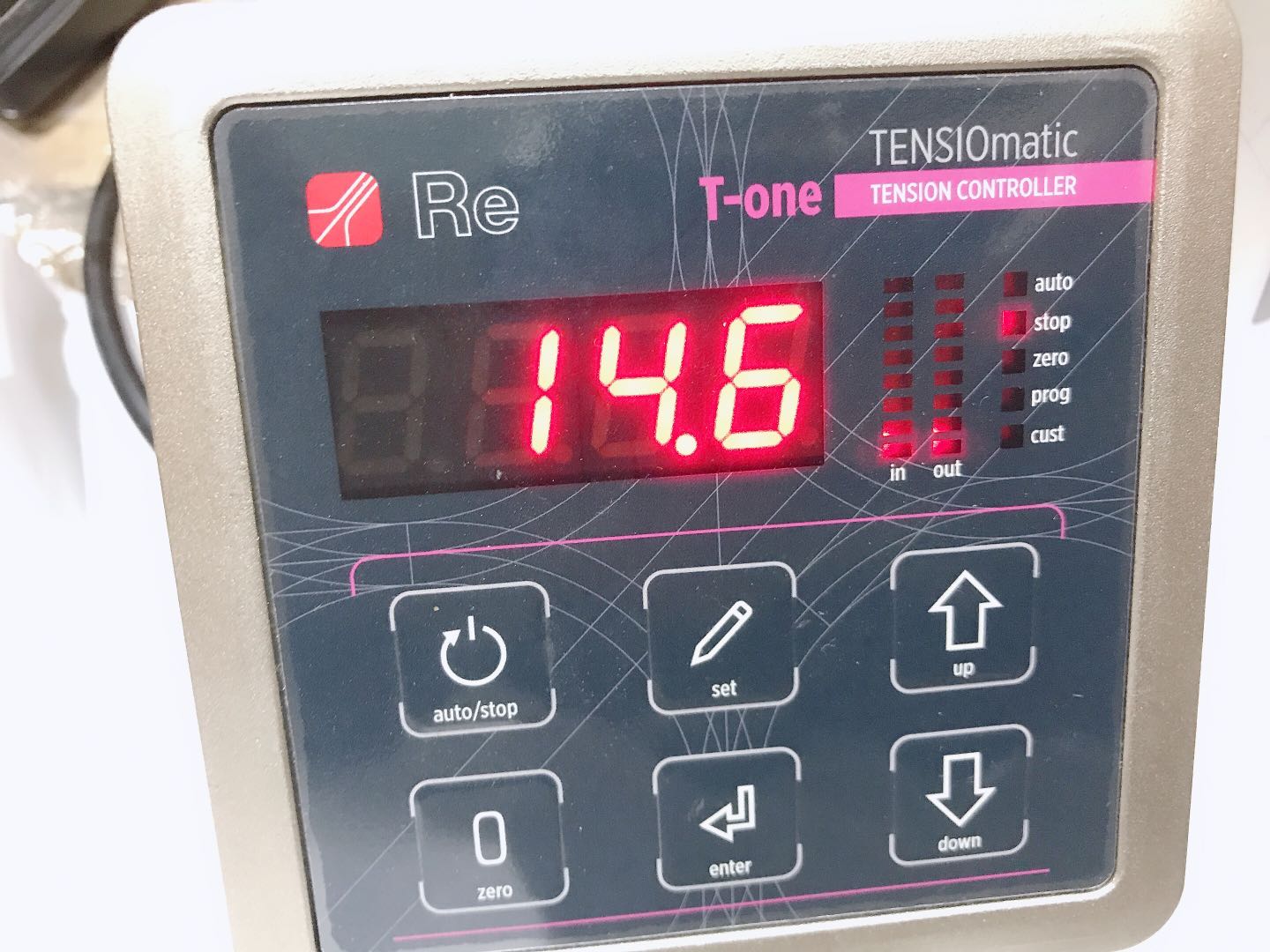

Unwinding equiped with auto tension control & EPC system.
MITSUBISHI Touch Screen Interface; Motion Control; Servo Motor
SICK Photoelectric Correction.
Unwinding equiped with auto tension control & EPC system.
Quantity
Main machine parameters:
| Model | New world -B220 | New world -B330 | New world -B400 | New world -B550 |
| Paper bag length | 191-430mm | 280-510mm | 280-600mm | 380-770mm |
| Paper bag width | 80-200mm | 150-330mm | 150-400mm | 220-550mm |
| Paper bag bottom width | 50-120mm | 70-150mm | 90-200mm | 100-210mm |
| Paper thickness | 50-140g/m2 | 60-140g/m2 | 70-140g/m2 | 80-140g/m2 |
| Machine Speed | 30-250pcs/min | 30-200pcs/min | 30-200pcs/min | 30-150pcs/min |
| Paper bag speed | 100-180pcs/min | 100-160pcs/min | 100-160pcs/min | 100-150pcs/min |
| Paper roll width | 290-630mm | 470-990mm | 510-1230mm | 630-1550mm |
| Roll paper diameter | 1500mm | 1500mm | 1500mm | 1500mm |
| Machine power | 380V 3 Phase 9kw | 380V 3 Phase 11kw | 380V 3 Phase 15.5kw | 380V 3 Phase 18.8kw |
| Machine weight | 5600kg | 8000kg | 9000kg | 11000kg |
| Machine size | 8600×2600×1900 mm | 9500×2600×1900 mm | 10700×2600×1900 mm | 13000×2600×2000 mm |
Main machine structure description
Details
