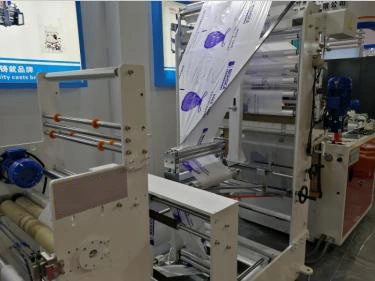

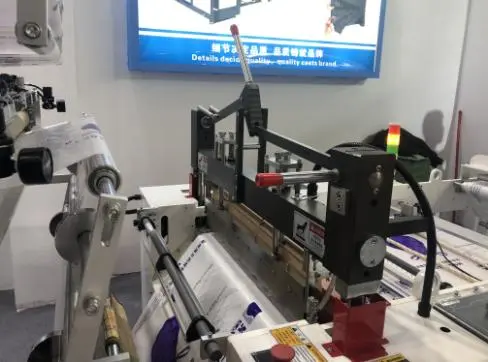

Biodegradable Coreless Garbage Bag Making Machine

AUTOMATIC BAG-ON-ROLL MAKING MACHINE CORELESS

Model NO. DCSZ

Minimum order quantity: 1

1. Touch screen computer control of the whole machine, providing users with a smooth and intuitive way to access their data, has become increasingly popular in recent years;
2. Servo motor control to make it easy to adjust the bag length and machine speed, making the entire process more efficient and allowing users to save time;
3. Equipped with EPC to ensure neat winding, reduce waste, and optimize the quality of the product Automatic roll changing to save labor cost and time;
4. Double-fold the bags to make them small and easy to pack. These features all come together to provide an efficient and cost-effective way to produce packaging materials

Quantity

Specifications:

Model	DCSZ-800	DCSZ-1000	DCSZ-1200
Width of bag making	400-700mm	500-900mm	600-1100mm
Length of bag making	300-650mm	500-800mm	600-1100mm
speed of bag making	40-120bags/min	40-100bags/min	30-85bags/min
Thickness of bag making	HDPE:0.007-0.025mm, LDPE:0.015-0.05mm
Final products	Draw tape bag on roll, draw string bag on roll
Total power	15kw	15kw	18kw
Weight	3200kgs	3400kgs	3800kgs
Dimension after installation	700020002200mm	700020002200mm	7000200026mm00
Voltage of machine	380V,50Hz,3-ph

Description	Origin	Model
Main Motor	ITALY	Marelli Motori 1.5KW
Reducer Motor	ITALY
Main Motor Frequency Inventor	TAIWAN	DELTA
Feeding Motor	CHINA	DULY0.75KW
Feeding Motor Frequency Inventor	TAIWAN	DELTA
Servo Motor	TAIWAN	DELTA4.5KW
Computer	CHINA	CHIPCONTROL
PLC Computer On Re-winder	TAIWAN	DELTA
Photocell	ITALY	DATALOGIC
Bearing	GERMANY	GERBEAR
Heating Tube	TAIWAN
Electromagnetic Valve	JAPAN	SMC
Solid Relay	TAIWAN	FOTEK
Middle Rely	JAPAN	OMRON
Temperature Controller	TAIWAN	FOTEK
Electromagnetic Valve On Re-winder	TAIWAN	MINDMAN
Air Fan	TAIWAN	TAIJU
Cylinder	TAIWAN	AIRTAC MARTO
Serrated Knife	TAIWAN
Button And Switch	JAPAN	SHINEIDER
Approach Sensor	TAIWAN
Film Jam Sensor	JAPAN	PANASONIC
High Voltage Crevice Sensor	TAIWAN
Paper Pack Device	AMERICA	BP
Static Anti Device	CHINA
Sealer	CHINA
Thickness Of Machine Frame		16mm
