Automatic PP woven liner bag inserting bottom sewing machine
ZDLS
1
1. Use PLC control for easy and practical operation.
2. A design that is optimized, reasonable in structure, and power-efficient
3. To achieve high accuracy and efficiency, use servo control.
4. Conveniently and quickly adjust to various specifications.
2. A design that is optimized, reasonable in structure, and power-efficient
3. To achieve high accuracy and efficiency, use servo control.
4. Conveniently and quickly adjust to various specifications.
Quantity

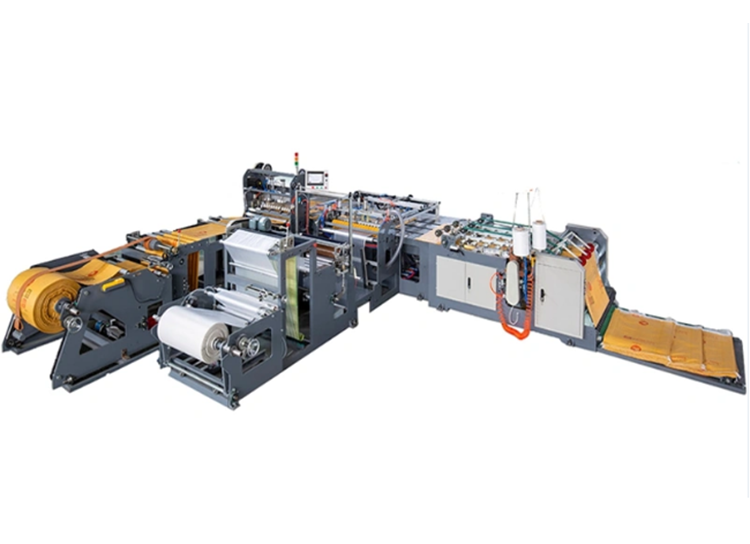

Automatic PP woven liner bag inserting bottom sewing machine
This Automatic PP woven liner bag inserting bottom sewing machine is capable of producing PP woven bags with liner bags, including making, inserting, and sewing PP woven bag bottoms. It also uses an imported servo motor control system, follow-up bag sensor, and length that is freely, correctly, and steadily fixed (3 in 1 online finish production). Plastic roll films like HDPE, LDPE, and LLDPE are used to create the liner bag. especially for productions that are widened and lengthened. High efficiency and labor savings are achieved.
Main Technical Parameters
Model | ZDLS-1000W |
Bag-making width | 1000mm |
Bag-making length (lamination bag length ) | >800mm |
Bag-making thickness | 0.05-0.10mm |
Bag-making speed | 5-25pcs/min |
Main motor | 2.2kw |
Step motor | 2.0kw |
Feeding power | 300w |
Heating power | 2.0kw |
Power supplyer | 50hz 380V 3phase |
Weight of machine | 2100kg |
Overall dimensions(L*W*H) | 6.9*5*1.8 |
