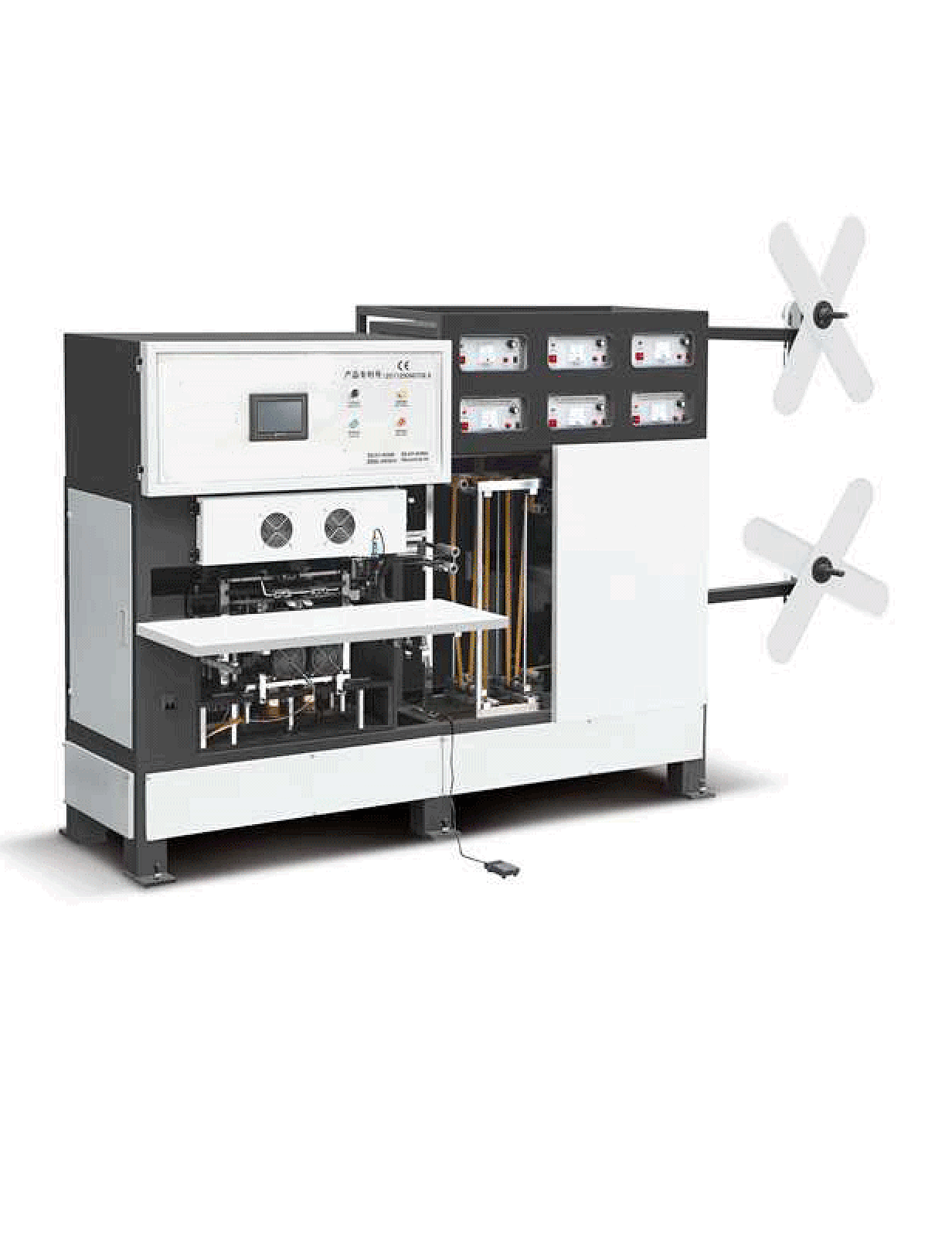

Automatic Soft Handle Sealing Machine
DCWB-F700
1
This machine is designed in year 2015 according to market feedback. Using non woven fabric roll as material, through folding, bonding, grabbing & cutting, ultrasonic welding process to attache handle to non woven box bag. abandon the rotating cylinder, Using PLC and stepper motor feeding, plus touch screen interface.
Quantity

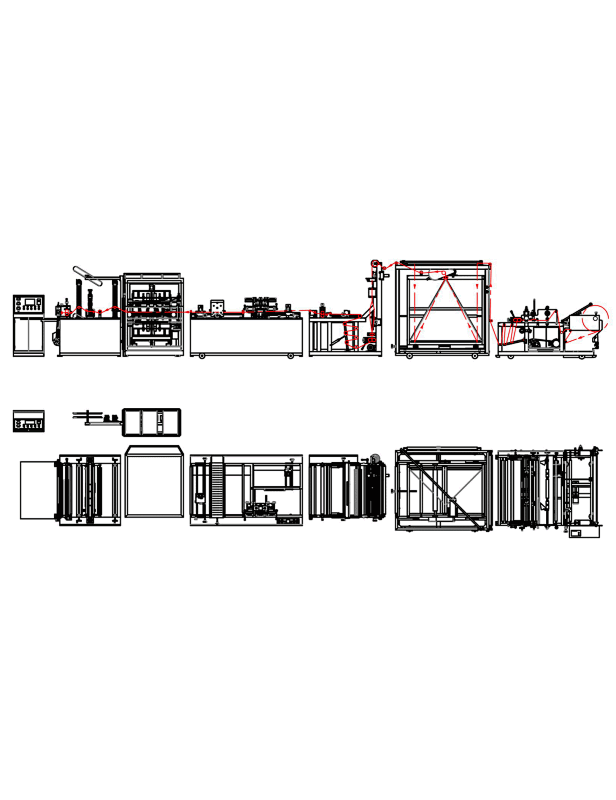

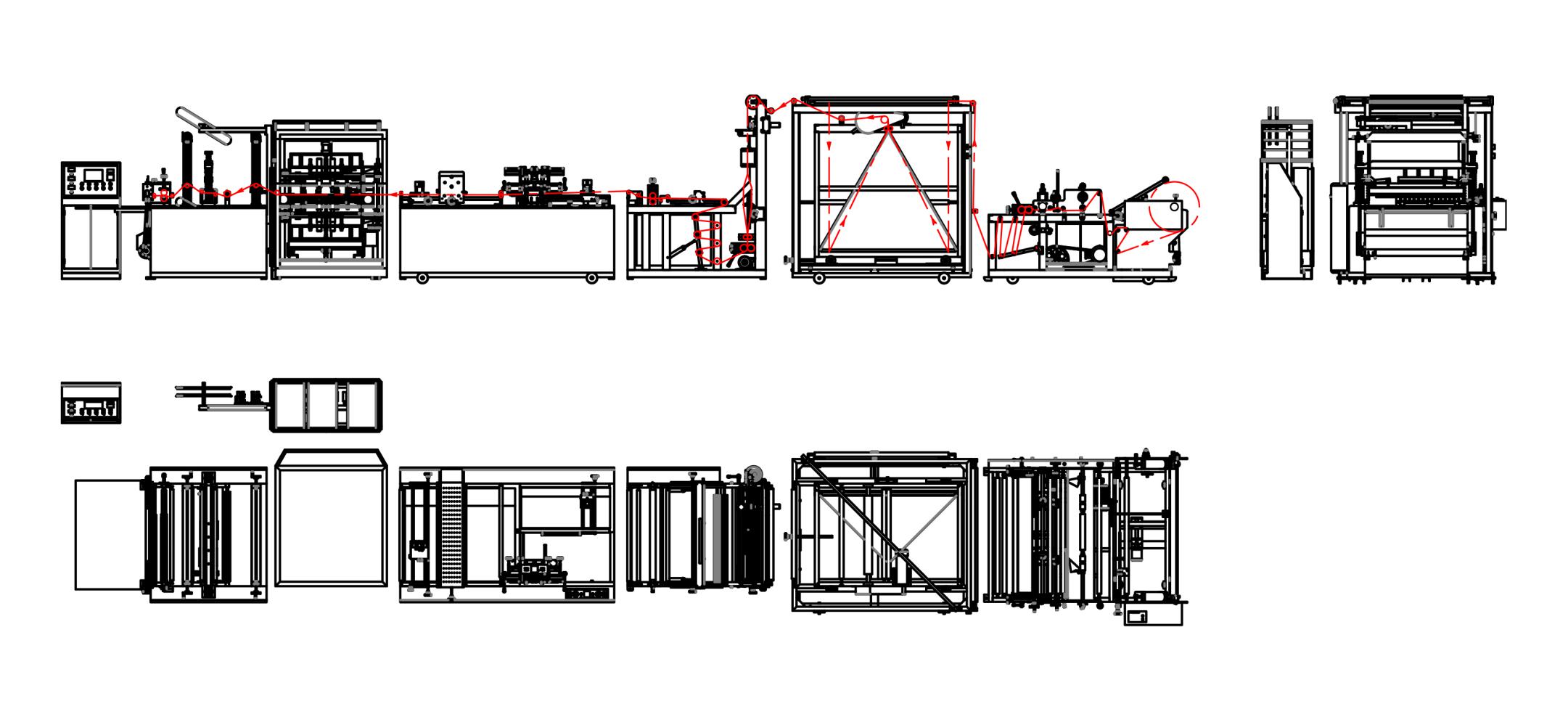

1. Schematic diagram
4. Machine characteristics
1.Feature
This machine is designed in year 2015 accroding to market feedbak. Using non woven fabric roll as material, through folding, bonding, brabing & cutting, untrolsonic welding process to attache handle to non woven box bag. abandon the rotating cylinder, Using PLC and stepper motor feeding, pluse touch screen interface.
2. Machine Technical Data
2. Soft Handle Sealing Machine Procedure

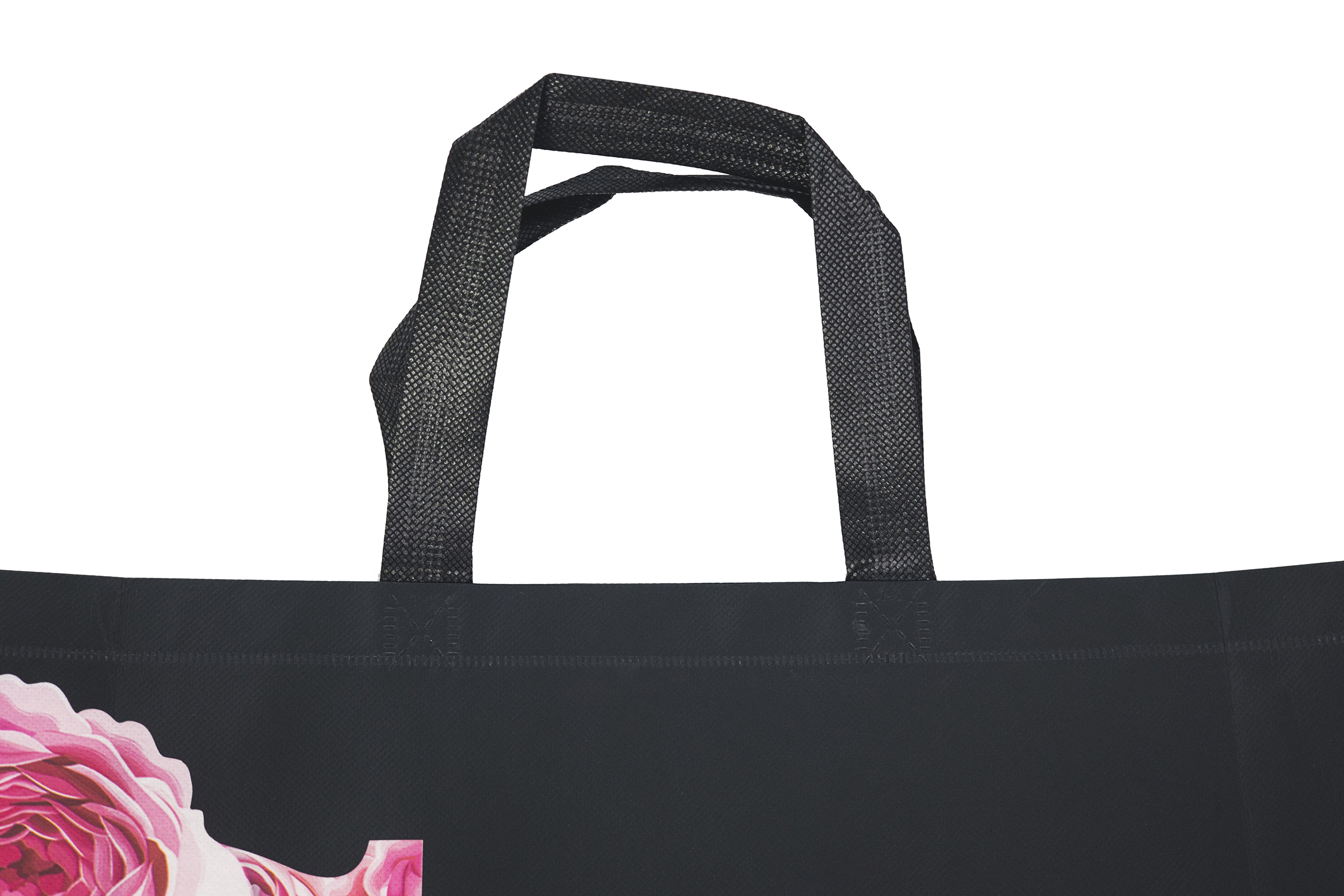

3. Product samples:
4. Machine characteristics
1.Feature
This machine is designed in year 2015 accroding to market feedbak. Using non woven fabric roll as material, through folding, bonding, brabing & cutting, untrolsonic welding process to attache handle to non woven box bag. abandon the rotating cylinder, Using PLC and stepper motor feeding, pluse touch screen interface.
2. Machine Technical Data
| SN | Item | Specification |
| 1 | Handle Length | 390-600mm |
| 2 | Handle Width | 25mm (standard) |
| 3 | Thickness | 60-100gsm |
| 4 | Max feeding diameter | 600mm |
| 5 | Operate way | Manual operate |
| 6 | Capacity | 20-30pcs/min |
| 7 | Power supply | 220V 50Hz |
| 8 | Total power | 9KW |
| 9 | Overall size | L3630* W 1090* H 2040mm |
| 10 | Weight of Machine | 900KGS |
3. Main equipment and Description
| SN | Item | Specification | Picture |

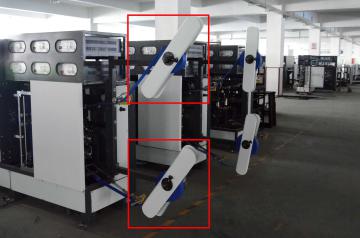

| 1 | Feeding Unit | ||
| 2 | RollDiameter | 600mm | |
| 3 | Roll Width | 50mm | |

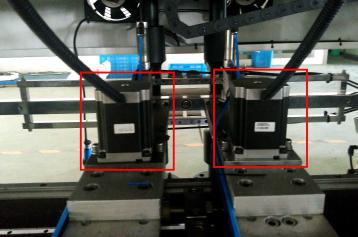

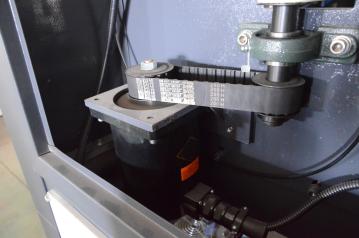

| 4 | Stepping Motor | ||
| 5 | Stepping Motor | ||

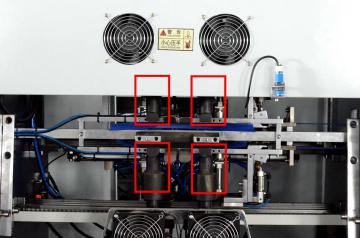

| 6 | Ultrasonic | 55MM; 30x30MM | |
| 7 | Touch Screen(PLC) | ||
| 8 | Switch,Button | ||

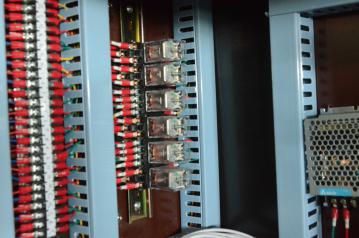

| 9 | Relay | ||

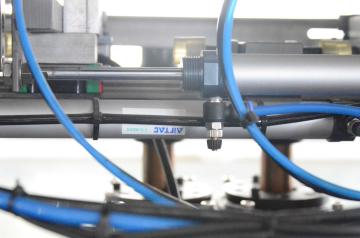

| 10 | Pneumatic Components |
