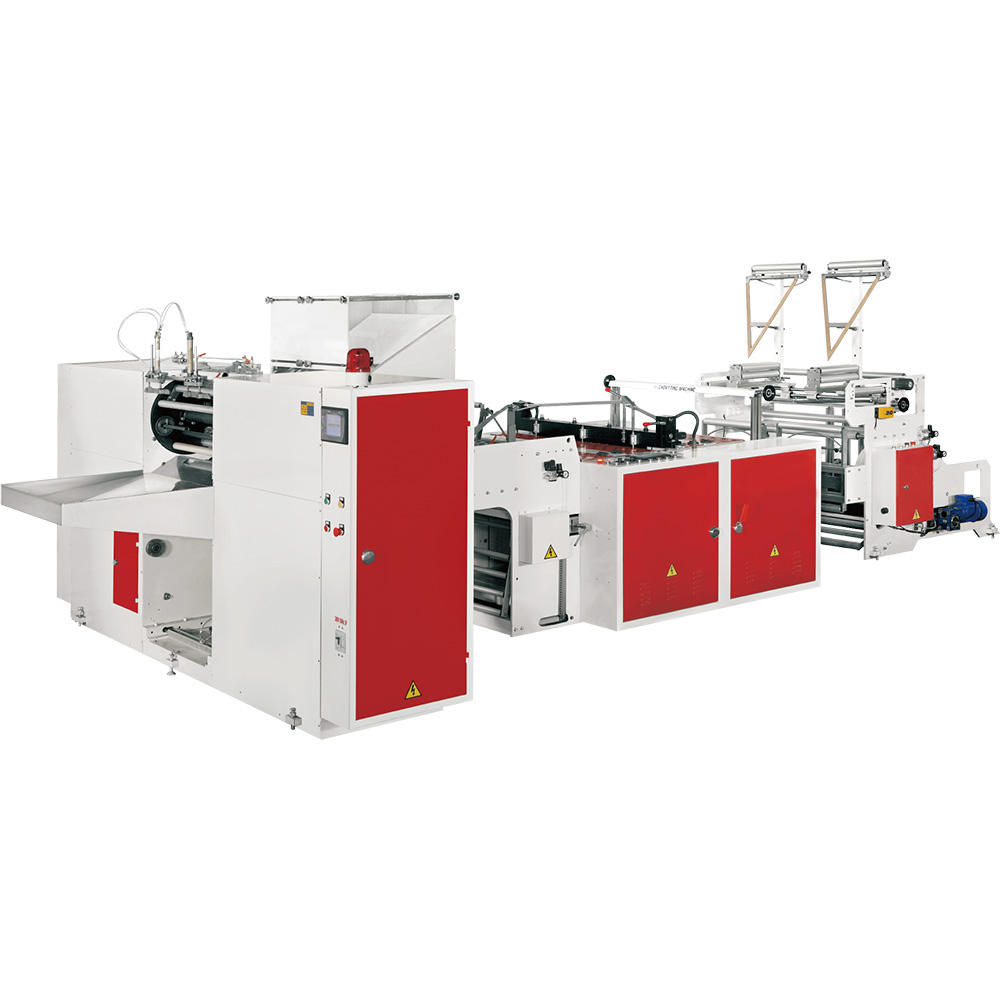

Biodegradable Garbage Bag Making Machine
DCSZ-1000PG+OR
1
This is a high speed draw tape garbage bag making machine with bag on roll.
Quantity
Biodegradable Garbage Bag Making Machine
DCSZ-1000PG+OR
Automatic biodegradable draw tape garbage bag making machine
Brief:
This is a high speed draw tape garbage bag making machine with bag on roll.

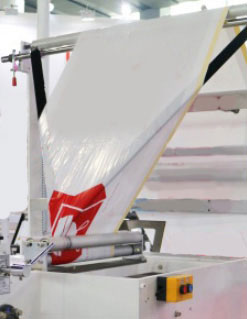

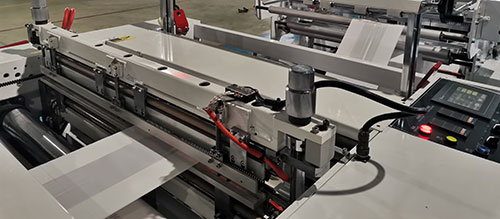

Hot air sealing unit
The design on this unit seals the top with hot air. Continuous sealing increases productivity.

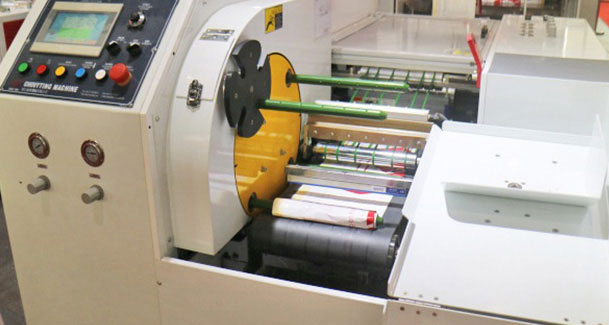

Fully automatic rewinding machine for perforation bag-on-roll without core (automatic changing)
• Cordless winding of film rolls.
• Alarm system for auto stop.
• Automatic jam detection system.
• Automatic reset of film roll transfer.

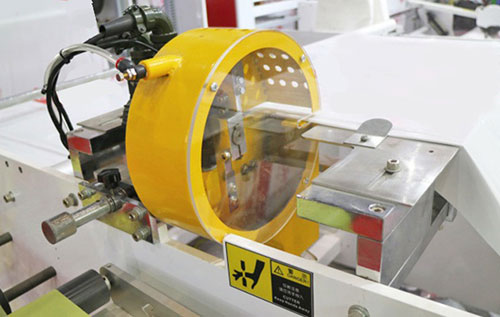

hole punch part

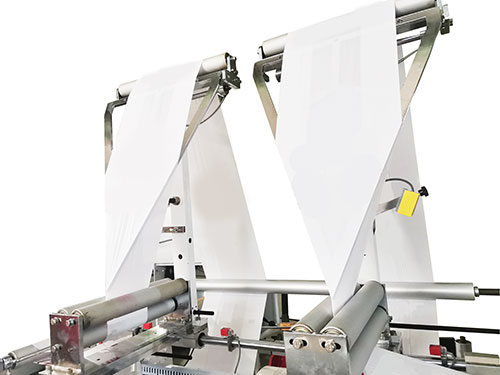

Triangle folding

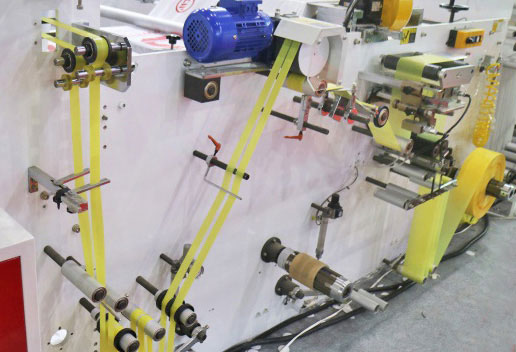

Drawstring unwinding
Collecting
DCSZ-1000PR+C2
Automatic biodegradable Soft Loop Handle Bag Making Machine
Brief:
This machine make garbage plastic bags, is producing rolling bag . Also can make star bag, garbage bag. Vegetable bag and table bag.Fully automatic exchange system can reduce the labour force,in the excellent servo driven system ,it is the best choice for producing printed bag and blank bag. Easy for operate.
1. Used 4 units of servo motor driving ,improve the speed and stability
2. Long time but low temperature sealing way ensures the quality of the bag.
3. Perforation line always keeps a same distance from the sealing line to ensure there won't be any defect whenever in changing of different length.
4. Principles of sealing system uses swing, do not stop feeding
5. Newly design paper core automatic feeding, positing and auto exchange new rolling
1) Auto label adding device
2) Double sealing device
3) Folding device
DCSZ-1000PG+OR
Automatic biodegradable draw tape garbage bag making machine
Brief:
This is a high speed draw tape garbage bag making machine with bag on roll.
Hot air sealing unit
The design on this unit seals the top with hot air. Continuous sealing increases productivity.
Fully automatic rewinding machine for perforation bag-on-roll without core (automatic changing)
• Cordless winding of film rolls.
• Alarm system for auto stop.
• Automatic jam detection system.
• Automatic reset of film roll transfer.
| Technical Parameter: | ||
| Model | DCSZ-1000PG+OR | DCSZ-1000PG |
| Unwinder width | 1000 mm | 1000 mm |
| Unwinder diameter | Φ900 mm(max.) | Φ900 mm(max.) |
| Height of bag making | 500-900mm | 500-900mm |
| Width of bag making | 300-1000mm | 300-1000mm |
| Bag making speed | 100pcs/min | 100pcs/min |
| Line speed | 60m/min | 60m/min |
| Rewinding width | 300mm | 300mm |
| Max.diameter of rewinding | Φ130mm | Φ160mm |
| Finished roll exchange times | 7rolls/min(max.) | 8rolls/min(max.) |
| Film thickness | 0.025-0.06mm | 0.025-0.06mm |
| Total power | ≈21KW | ≈19KW |
| Machine dimension[LxWxH] | 15000 x 2800 x3000mm | 12500 x 2800 x 3000mm |
| Machine weight | 4500kg | 4100kg |
| Air compressor | 7.5HP(not included) | |
hole punch part
Triangle folding
Drawstring unwinding
Collecting
DCSZ-1000PR+C2
Automatic biodegradable Soft Loop Handle Bag Making Machine
Brief:
This machine make garbage plastic bags, is producing rolling bag . Also can make star bag, garbage bag. Vegetable bag and table bag.Fully automatic exchange system can reduce the labour force,in the excellent servo driven system ,it is the best choice for producing printed bag and blank bag. Easy for operate.
1. Used 4 units of servo motor driving ,improve the speed and stability
2. Long time but low temperature sealing way ensures the quality of the bag.
3. Perforation line always keeps a same distance from the sealing line to ensure there won't be any defect whenever in changing of different length.
4. Principles of sealing system uses swing, do not stop feeding
5. Newly design paper core automatic feeding, positing and auto exchange new rolling
1) Auto label adding device
2) Double sealing device
3) Folding device
| Technical Parameter： | ||
| Model | DCSZ-1000PR+C2 | DCSZ-10000PR+C2+ST2 |
| Unwinder width | 900mm(Single line) | 1200mm (Single line) |
| 300mmx2 (Double line) | ||
| 900mm(max.) | ||
| Maximum unwinding width when C folding | ||
| Unwinder diameter | ф 1000mm (max.) | ф 1000mm (max.) |
| Length of bag making | 250-10000mm | 250-10000mm |
| Bag making speed | 250pcs/min | 250pcs/min |
| Max Depth of side gusset | 30-100mm | |
| Line speed | Cored - 80m/min | Cored - 80m/min |
| Coreless - 100m/min | Coreless -100m/min | |
| Rewinding width | Cored - 600mm(Single line) 300mm x 2 (Double line) | |
| Coreless - 600mm(Single line) 300mm x 2 (Double line) | ||
| 200mm(Double line) | ||
| Film unwind width | Maximum at C-fold 900mm | |
| Max.diameter of rewinding | ф160mm | ф160mm |
| Finished roll exchange times | Coreless 6 rolls/min | Coreless 4 rolls/min |
| Film thickness | HDPE 0.015-0.04mm | HDPE 0.015-0.04mm |
| LDPE 0.02-0.08mm | LDPE 0.02-0.08mm | |
| Total power | ≈18.8KW | ≈18.8KW |
| Machine dimension[LxWxH] | 6600X3300X1900mm | 8600X3600X1900mm |
| Machine weight | 2900kg | 2900kg |
| Air compressor | 6HP (Excluding air compressor) | |
