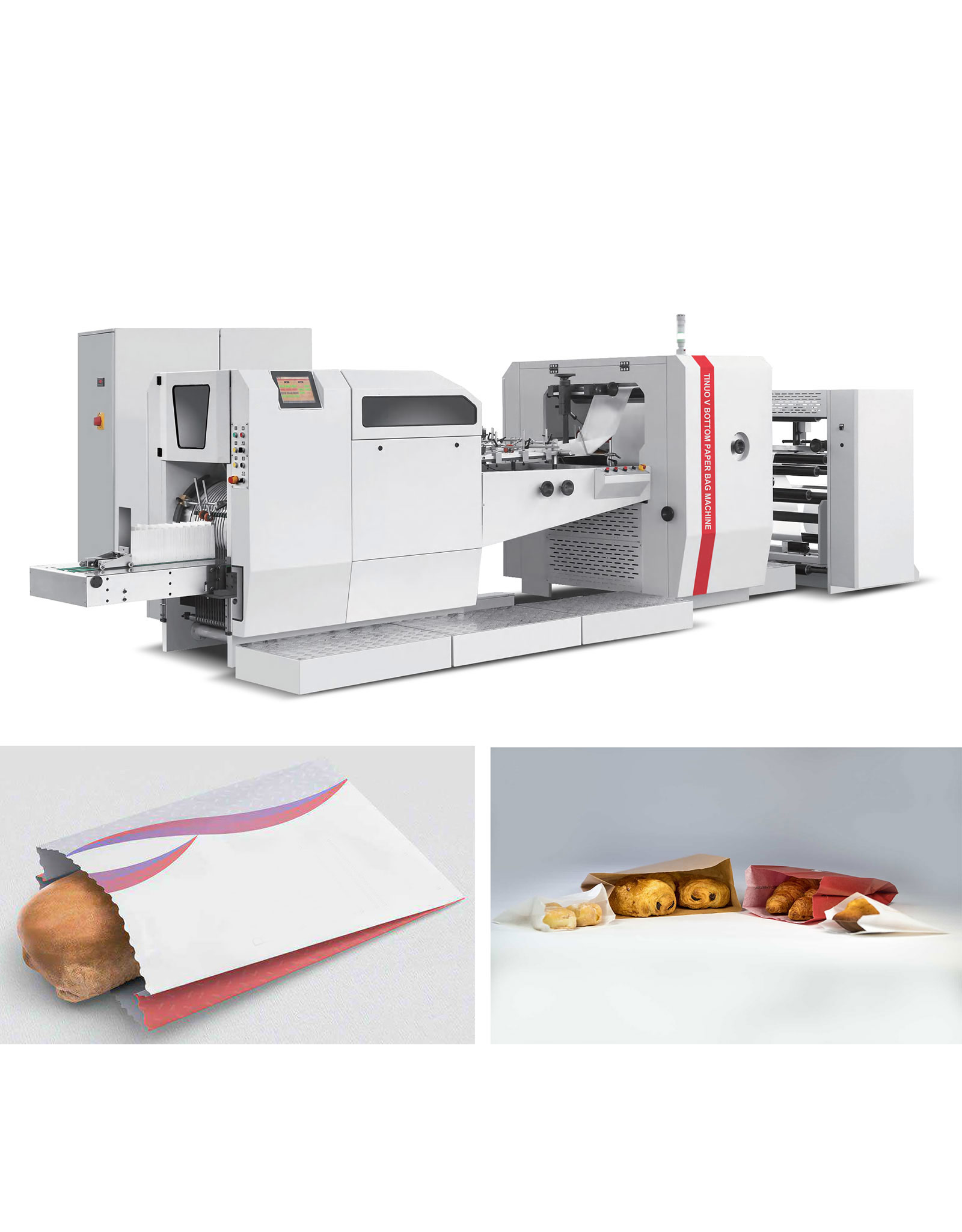

Bread Paper Bag Machine
DCZZ-250/350
1
The V-bottom paper bag machine uses printing-grade or real original colored paper like kraft paper, glossy paper, or medical paper roll.
Puncture, center glue, color code length, raw material into a tube, set of long retreat, bottom fold bottom, and bottom glue make up the procedure, completed once. Every stage of the production process will be run by automatic systems. It runs effectively, reliably, and conveniently.
It is used to make a range of paper bags, including Fenestration bread bags, leisure food bags, bread bags, dried fruit bags, and other environmentally friendly paper bags. From our sales personnel to our management, every aspect of business operation is under professional and strict control, ensuring quality stability
Puncture, center glue, color code length, raw material into a tube, set of long retreat, bottom fold bottom, and bottom glue make up the procedure, completed once. Every stage of the production process will be run by automatic systems. It runs effectively, reliably, and conveniently.
It is used to make a range of paper bags, including Fenestration bread bags, leisure food bags, bread bags, dried fruit bags, and other environmentally friendly paper bags. From our sales personnel to our management, every aspect of business operation is under professional and strict control, ensuring quality stability
Quantity
| Specification | 250 | 350 |
| PaperBag length | 100-450mm | 160-715mm |
| PaperBag width | 70-250mm | 70-350mm |
| Side Width | 20-120mm | 20-120mm |
| Bag mouth height | 15/20mm | 15/20mm |
| Production speed | 3-300pcs/min | 50-650pcs/min |
| Power | 380v 3phase4wire，24kw | 380v 3phase5wire，27.1kw |
| Weight | 4500kg | 6500kg |
| Dimension | 7100x3000x2200mm | 200-920mm |
| FeedingPaperRolldiameter | Φ1000mm | Φ1000mm |
| Paper Roll Core diameter | Φ76mm | Φ76mm |
| Paper thickness | 35-80g/m2 | 35-80g/m2 |
| Air source | ≥0.12㎥/min，0.5-0.8MPa | ≥0.12㎥/min，0.5-0.8MPa |
 | ||
