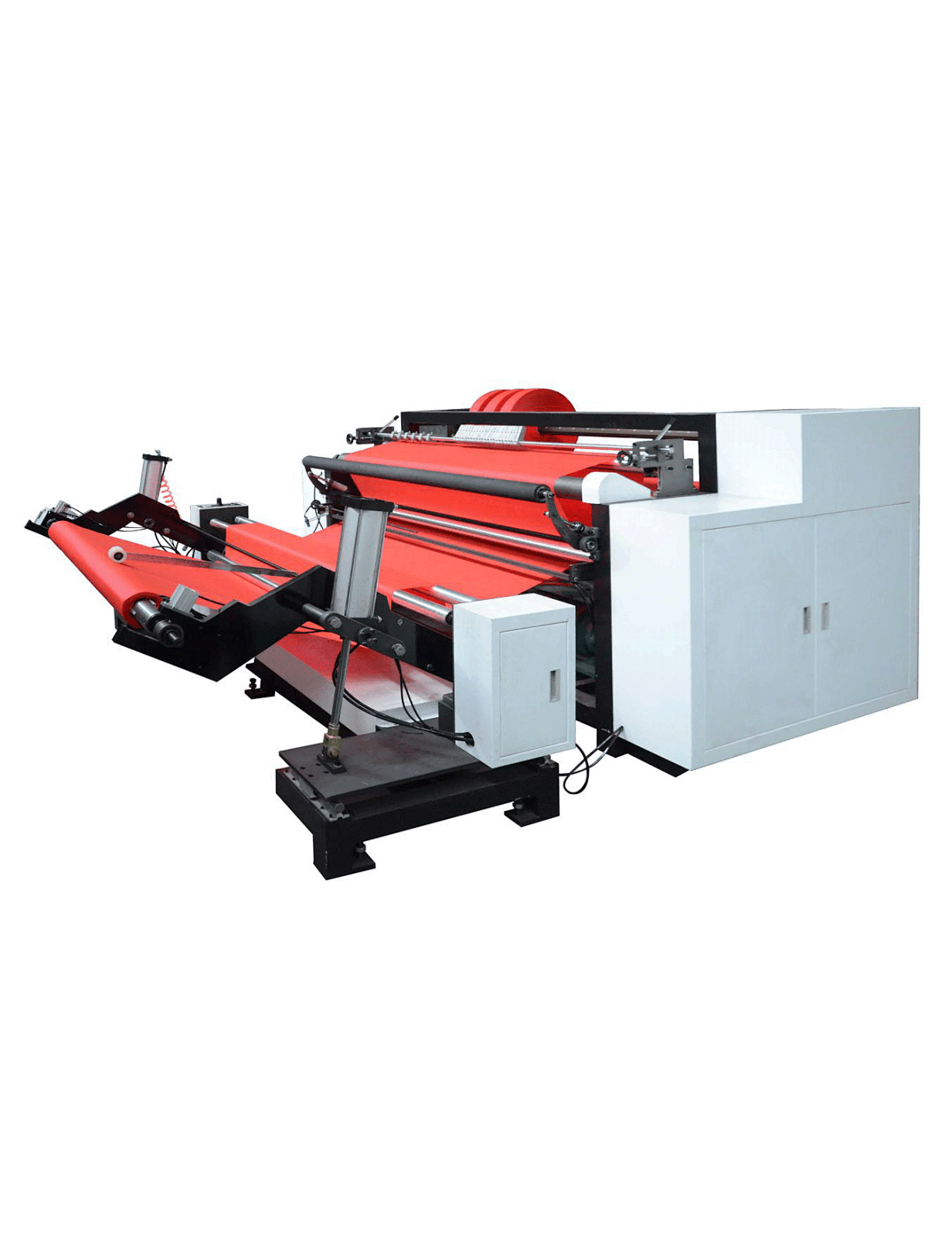

Double Rewinding Non Woven Slitting Machine
DCWQ-XE1800DR
1
Quantity
1.Machine Description
1. Schematic diagram
2.Machine characteristics
1.Feature
This machine is for non woven fabric slitting, automatic loading the raw material and slitting the non woven fabric into different width roll by roll . Standard with 30 sets knives can change site and minute slitting width 25mm. Machine with Automatic correct deviation system and magnetic tension controller. It can give you strong support of bag and handle feeding material.
2. Machine Technical Data
3.Main equipment and Description

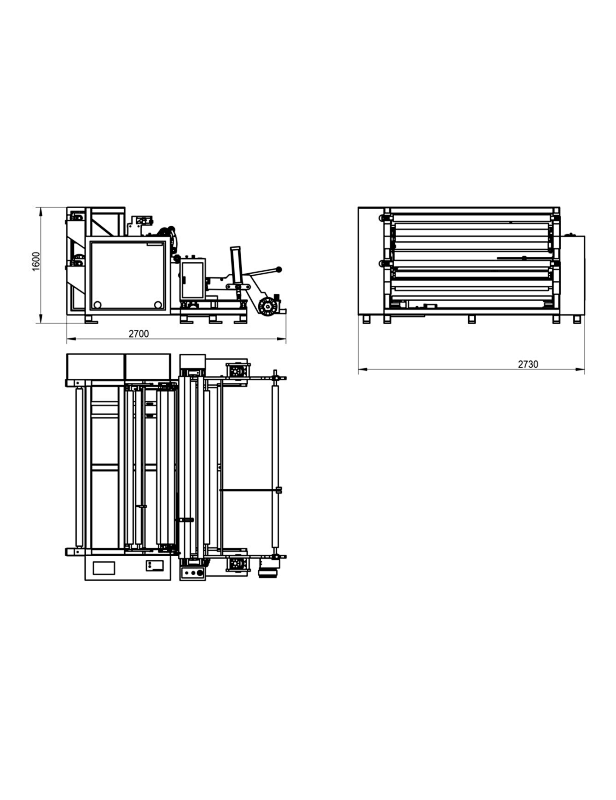

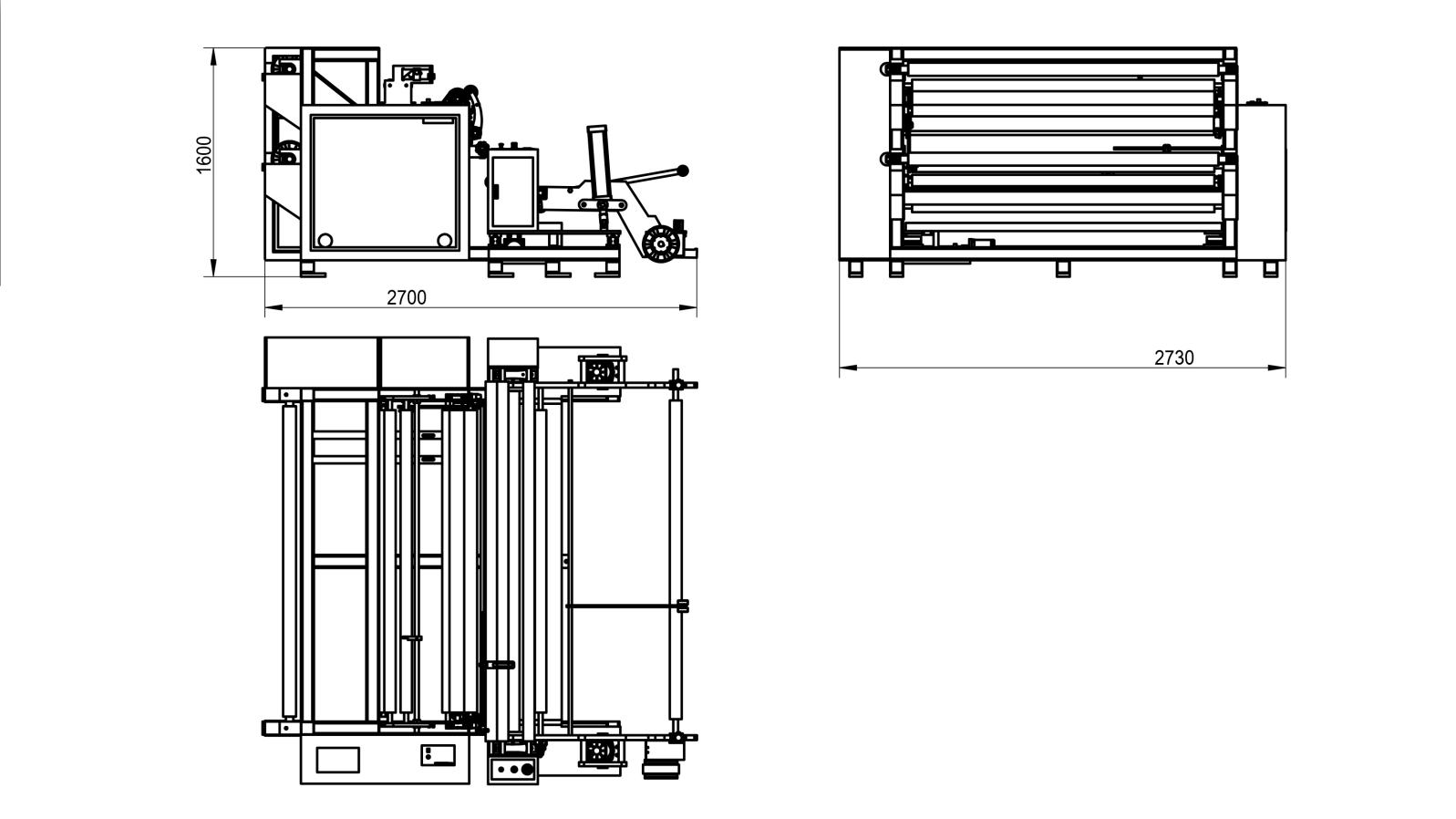

1. Schematic diagram
- NonwovenSlitting Procedure
- Fabric samples:
2.Machine characteristics
1.Feature
This machine is for non woven fabric slitting, automatic loading the raw material and slitting the non woven fabric into different width roll by roll . Standard with 30 sets knives can change site and minute slitting width 25mm. Machine with Automatic correct deviation system and magnetic tension controller. It can give you strong support of bag and handle feeding material.
2. Machine Technical Data
| SN | Item | Specification |
| 1 | Roller width | 25-1800mm |
| 2 | Slitting speed | 50-90m/min |
| 3 | Min slitting width | 25mm |
| 4 | Power supply | 220V 50Hz |
| 5 | Total power | 5KW |
| 6 | Rated power | 5KW |
| 7 | Overall size | L2400* W 1800* H 950mm |
| 8 | Weight of Machine | 1500KGS (20HQ*1) |
3.Main equipment and Description
| SN | Item | Specification | Picture |

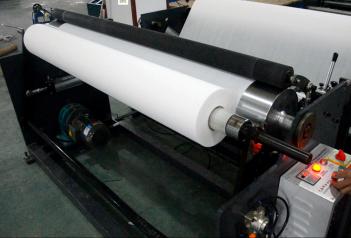

| 1 | Feeding Unit | ||

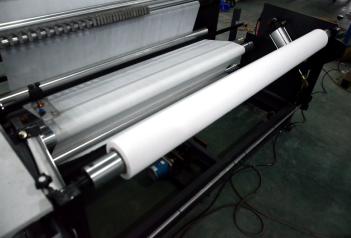

| 2 | Rewinding Unit | Max diameter 800mm | |
| 3 | Roll feeding | Auto tension control, centralization- | |
| 4 | Roll diameter | 1000mm | |
| 5 | Roller control device | φ3″（φ76mm）Air Shaft | |

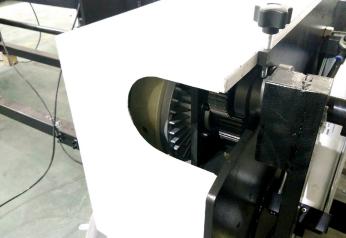

| 6 | Roller control device | Mangentic power tension | |

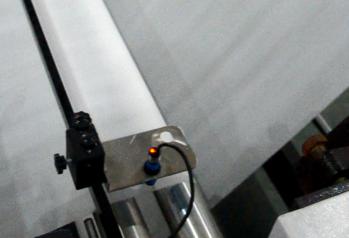

| 7 | Correcting deviation device | Automatica EPC syestem | |
| 8 | Converter Motor | ||

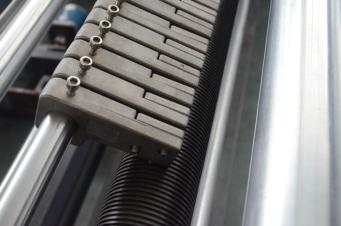

| 9 | Knife |
