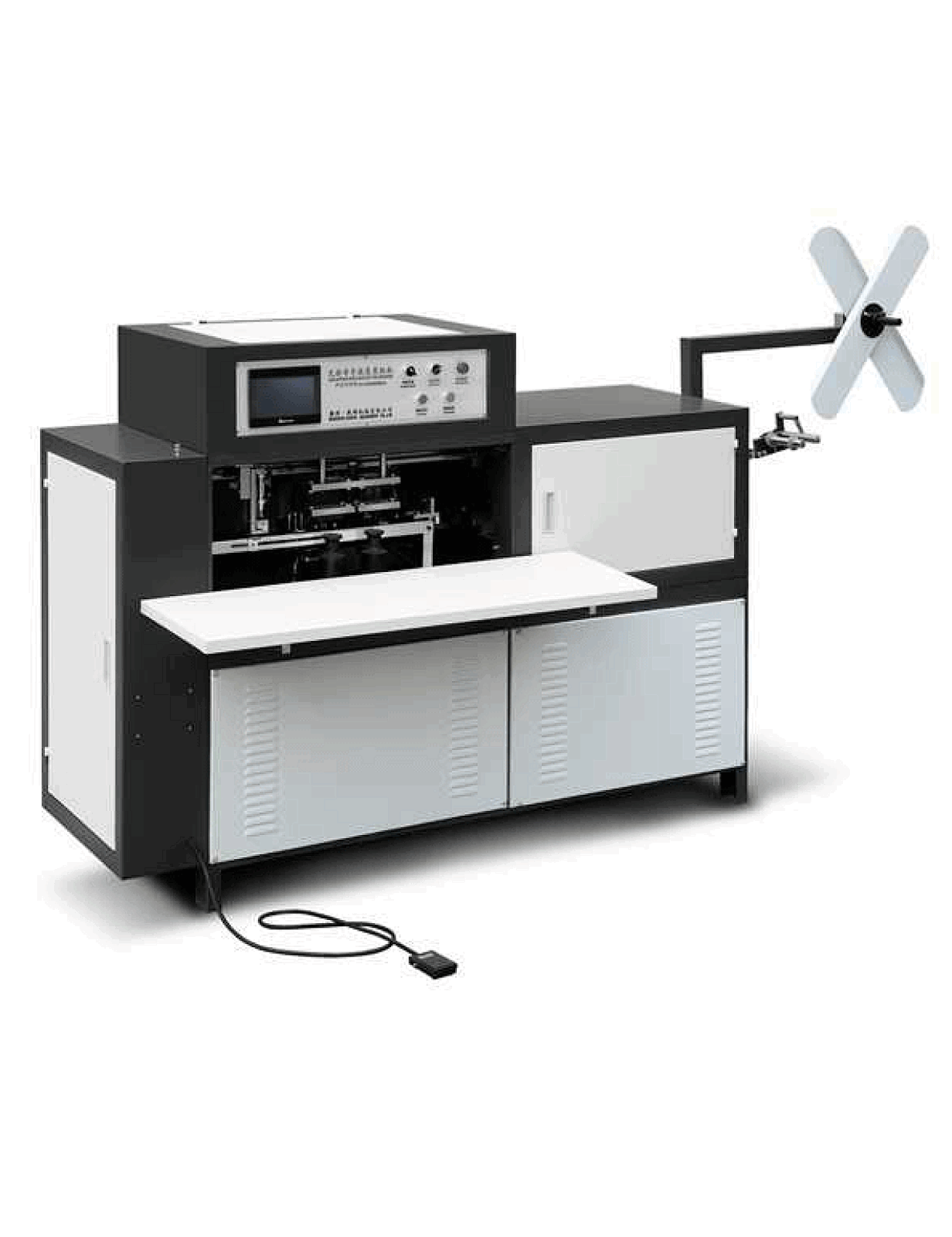

Full Automatic Soft Handle Sealing Machine
DCWB-G700
1
1. The function of this system is to attach non woven handle loops to different type of non woven bags by super sonic welding (sealing).
2. Using Non woven fabric roll as feeding material, through folding, thermal bonding, welding process to attach handle to non woven bags.
3. Touch Screen interface.
4. Ultrasonic emboss welding.
5. Non Woven Soft handle loop machine is an supplement to Semi Auto Non Woven Bag Making Machine, which makes box bag or vast bag without handle.
2. Using Non woven fabric roll as feeding material, through folding, thermal bonding, welding process to attach handle to non woven bags.
3. Touch Screen interface.
4. Ultrasonic emboss welding.
5. Non Woven Soft handle loop machine is an supplement to Semi Auto Non Woven Bag Making Machine, which makes box bag or vast bag without handle.
Quantity
1. Machine Description
2.Machine characteristics
1. Machine Technical Data
2.Main equipment and Description

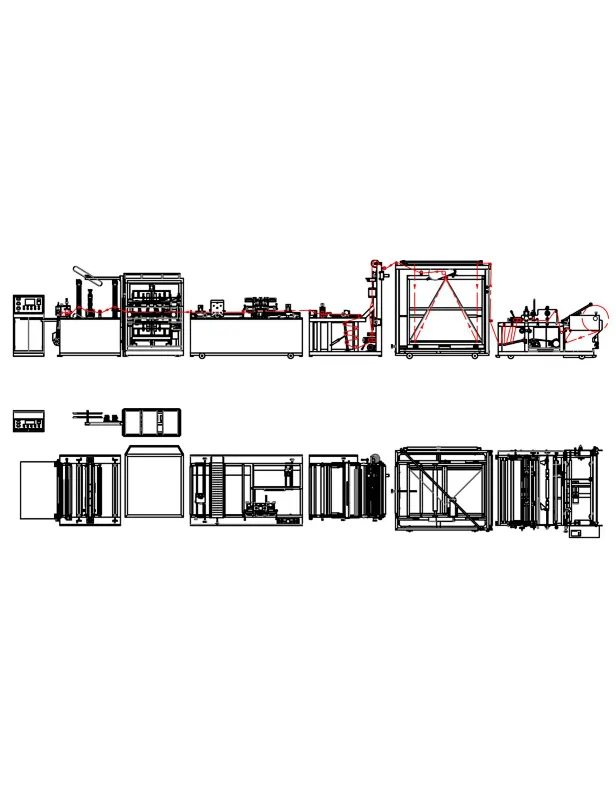

- Soft Handle Sealing Machine Procedure
- Bag samples:
2.Machine characteristics
1. Machine Technical Data
| SN | Item | Specification |
| 1 | Handle Length | 390-600 mm |
| 2 | Handle Width | 25 mm (standard) |
| 3 | Thickness | 60-100 gsm |
| 4 | Max feeding diameter | 600 mm |
| 5 | Operate way | Manual operate |
| 6 | Capacity | 10-20 pcs/min |
| 7 | Power supply | 220V 50Hz |
| 8 | Total power | 5 KW |
| 9 | Overall size | L2650* W 1090* H 1650mm |
| 10 | Weight of Machine | 500KGS |
2.Main equipment and Description
| SN | Item | Specification | Picture |

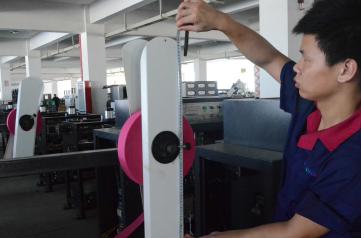

| 1 | Feeding Unit | ||
| 2 | RollDiameter | 600mm | |
| 3 | Roll Width | 50mm | |

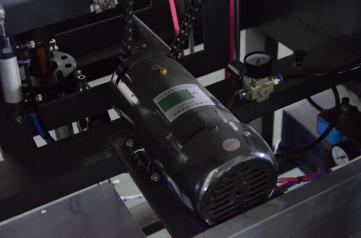

| 4 | Direct Current Motor | ||

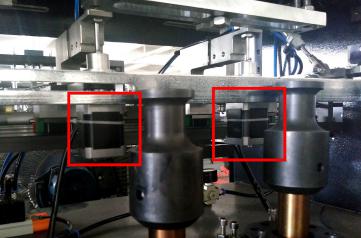

| 5 | Stepping Motor | ||

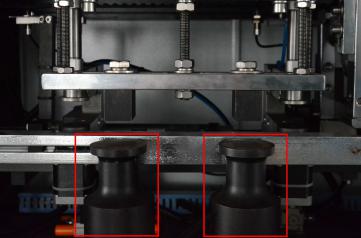

| 6 | Ultrasonic | 55MM | |

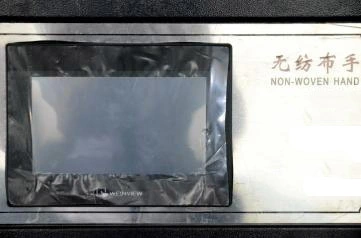

| 7 | Touch Screen(PLC) |  | |

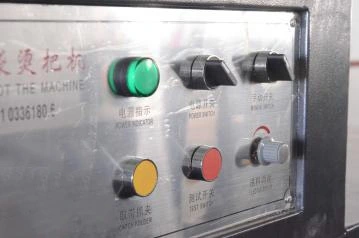

| 8 | Switch,Button |  | |

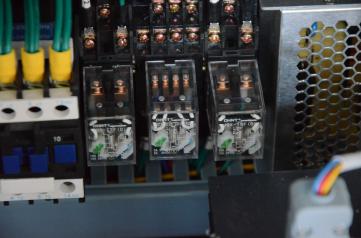

| 9 | Relay | ||

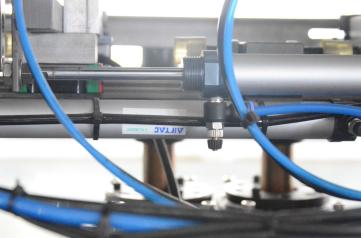

| 10 | Pneumatic Components |
