High-Speed Flat Yarn Extrusion Line
ZD & QL
1
The Flat Yarn Extrusion Line benefits from a compact structure, a beautiful appearance, stable operation, flexible and reliable control, precision manufacturing engineering, easy operation, and reliable production.
Quantity

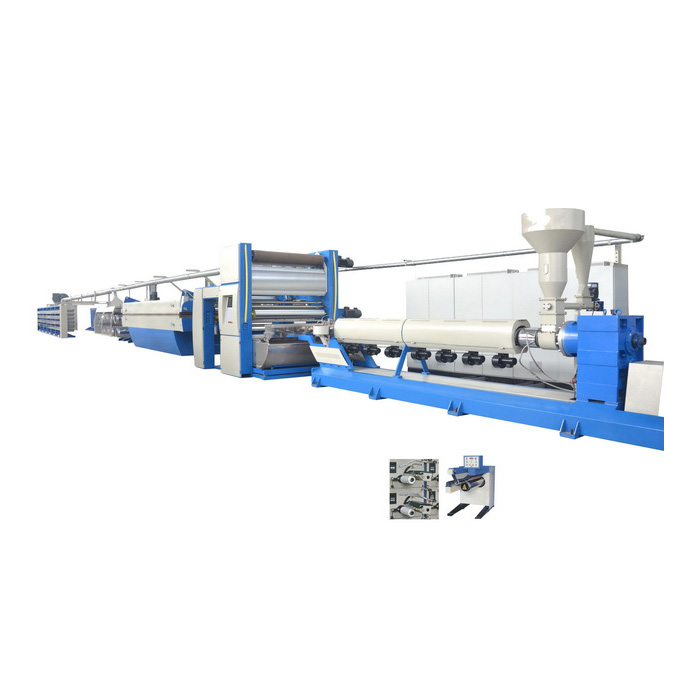

High-Speed Flat Yarn Extrusion Line

Extrusion Line for Flat Yarn It can be heated, squeezed, and stretched to make a flat yarn extrusion line out of polypropylene and high-density polyethylene, which can then be rolled and used for weaving on a round loom.
A microprocessor and a frequency conversion governor control the PP flat yarn drawing machine. On the basis of absorbing international advanced technology, the setting and display of technical data can be completely digitized.
The length-to-diameter ratio was increased; a new type of separation screw was used; the mixing zone on the extruder screw pot was widened; and the extruder screw and barrel were made of 38CrMoA1A alloy steel. The hardness after nitriding treatment is greater than HV950, the plasticizing effect is good, and the energy consumption is low.
Helical gear reducer made of 20CrMnTi alloy steel, 45# medium carbon steel gear and sprocket, and high frequency quenching treatment The driving roller is hard chrome-plated, and the driving unit is self-controlled by winding roller tension. Extruder cylinders, pressure cylinders, and molds are long-lasting cast aluminum heaters.
Stretch film lines use an advanced automatic belt changing filter in their belt changing filter system. The baking sheet has been transformed into an advanced, hot pull-out oven. The winding machine has a no-friction drive, constant tension winding, and high quality fiber drum forming.

Main Technical parameters
ZD SERIES (High Speed)extrusion
volume		Driving
power of
extruder		Screw
diameter		Ratio
of L/D		Revolution
n of screw		Die lip
width		Max
production
speed
Flat thread
fibre scope		Drawing
ratio		Number
of winder
(Spindles)		System
installed
Capacity		System normal
operational
capacity		Overall dimensions
(LxWxH)		Weight
(kg)
ZD-SPL-70/33/850180kg/h45kw70mm33:120-120r/min850m/min280m/min60-200tex4-10144★240kw128kw2700x3700x280021000
ZD-SPL-90/33/1000280kg/h90kw90mm33:120-120r/min1000m/min280m/min60-200tex4-10176★300kw160kw3500x3700x300028000
ZD-SPL-100/30/1100350kg/h90kw100mm30:120-120r/min1100m/min280m/min60-200tex4-10192★320kw170kw3400x3700x300030000
ZD-SPL-120/30/1500490kg/h160kw120mm30:120-120r/min1500m/min280m/min60-200tex4-10256★400kw210kw3700x3900x260032000

QL SERIESDiameter of
screw（mm		L/D ratio of
screw		Rotational speed
of screw(r/min)		Width of
Die(mm)		Motor power
of extruder(kw)		Heating power
of extruder (kw)		Power of driving
Motor(kw)		Heating power
of the oven(kw)		Thickness of
 tape(mm)		Capacity
(kg/h)		Drawing speed
(m/min)		Installing dimensions
(L×W×H)(mm)		Weight(kg)
QL-FS110/800B11024:120-8080030367.5150.025-0.0850-10020-15013300×1500×20006500
QL-FS120/1000B12024:120-80100030437.5200.025-0.0860-12020-15014700×1750×20008000
QL-FS120/1200B12024:120-80120030477.5240.025-0.0870-14020-15016200×2050×200010000
QL-FS135/1600B13526:120-701600377711300.03-0.0890-18020-15016800×2600×200016000
QL-FS135/1800B13526:120-701800458011300.03-0.08100-20020-15016800×2950×200017000
QL-FS140/2000B14026:120-702000458611300.03-0.08110-22020-15020000×3200×200020000
QL-FS150/2200B15026:120-702200558611300.03-0.08120-26050-15022000×3700×200021500
QL-FS150/2400B15028:120-652400559211320.03-0.08140-28050-15022000×4000×200023000
QL-FS160/2600B16028:120-652600759615320.03-0.08140-30050-15023000×4400×250024500
QL-FS160/2800B16028:120-6528007510615340.03-0.08160-32050-15023000×4600×250025000
QL-FS160/3000B16028:120-6530009010615340.03-0.08160-34050-15024000×4800×250026500
QL-FS170/3200B17028:120-6532009011215360.03-0.08180-35050-15025000×5000×250027500
QL-FS170/3500B17028:120-65350011011815360.03-0.08200-36050-15025000×5200×250029000

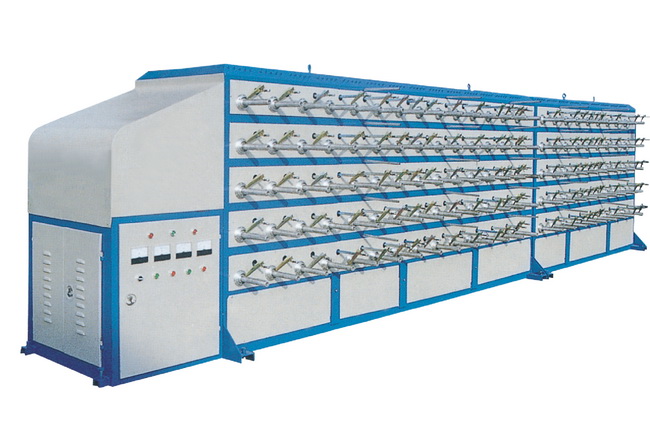

Cam Type Winding:

Item/TypeLayer
number
of spindle		Number
of
spindle		Width
of tape
spindle		Linear Speed
of tape
winding		Power of
main
motor		Power of
winding
motor		Installing dimensions
(LxWxH)		weight
ZD-STL-II/150515020030-1602.274700x1500x17002800
ZD-STL-II/170517020030-1602.285200x1500x17003000
ZD-STL-II/190519020030-1602.295700x1500x17003400
ZD-STL-II/240524020030-1603117000x1500x17004200
ZD-STL-II/300530020030-1603148500x1500x17005300
ZD-STL-II/380538020030-16031710500x1500x17006600
ZD-STL-II/420542020030-16031911500x1500x17007300
ZD-STL-II/480548020030-16032213000x1500x17008100
