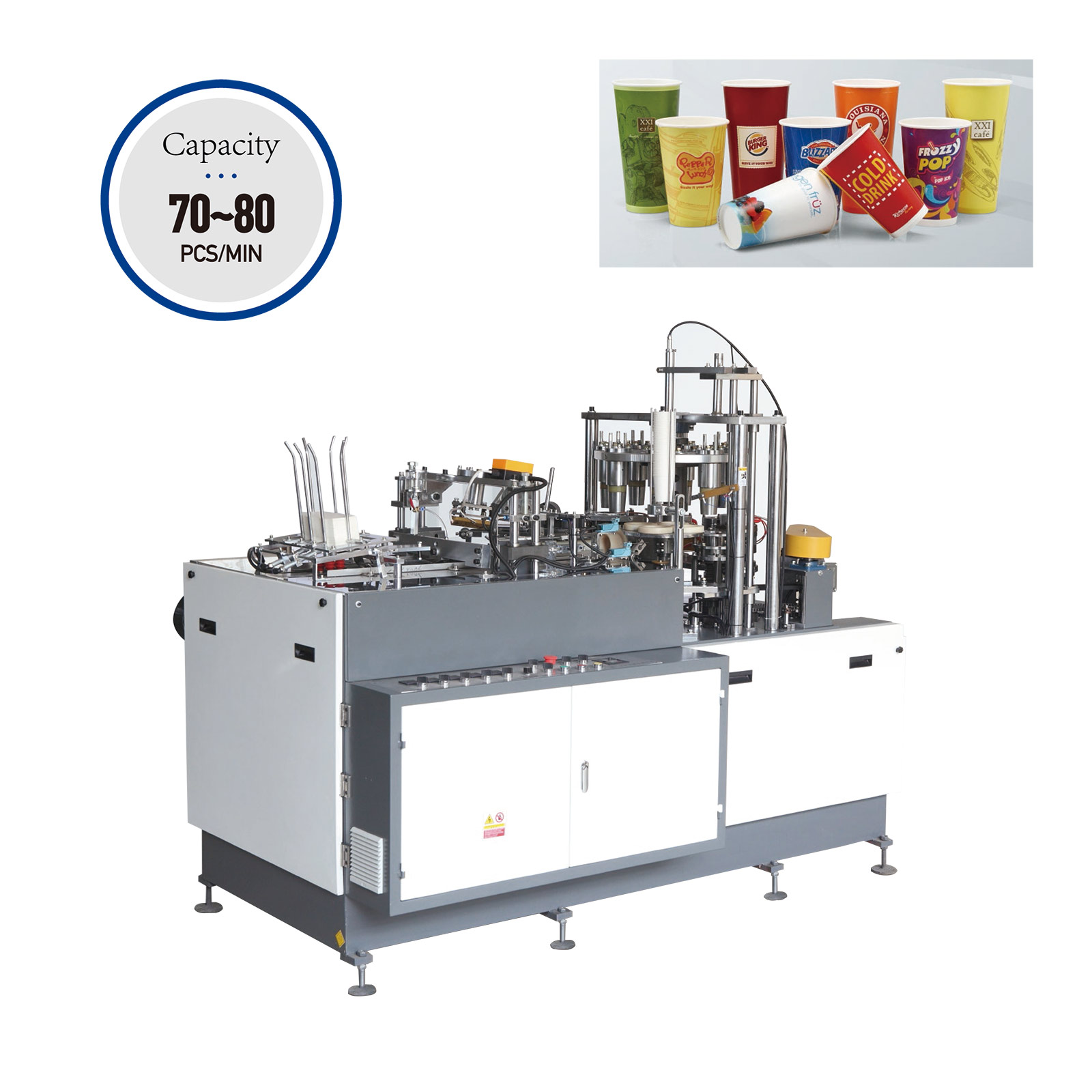

Fully Automatic Heater Knurling Paper Cup Making Machine new top paper cup machine
DCZB-DPL12/LS
1
1. The operating system uses PLC to reduce button miscontact and fully automate artificial intelligence production.
2. The working principle is that the entire machine is mostly driven by a main motor to work, resulting in the perfect fusion of gear and CAM structure.
3. An independent motor (PVC) drives the bottom paper feeding device, which automatically cuts every scrap of paper into small pieces.
4. Because the machine now uses a single aluminum plate, the machine's failure rate has been greatly reduced, as has the operator's training time.
5. A fully automatic lubrication system is used.
6. It includes an ultrasonic heater and an automatic cup receiver to cut labor costs.
2. The working principle is that the entire machine is mostly driven by a main motor to work, resulting in the perfect fusion of gear and CAM structure.
3. An independent motor (PVC) drives the bottom paper feeding device, which automatically cuts every scrap of paper into small pieces.
4. Because the machine now uses a single aluminum plate, the machine's failure rate has been greatly reduced, as has the operator's training time.
5. A fully automatic lubrication system is used.
6. It includes an ultrasonic heater and an automatic cup receiver to cut labor costs.
Quantity
-PLC
-Ultrasonic
-Cup collector
-Gear transmission
-Automatic lubrication
-Single aluminum plate
-Over 7 sensors
-Separated motor for bottom paper feed-in
| TECHNICAL PARAMETER | ||
| MODEL | DPL12 | LZ |
| RATED SPEED | 70-80PCS/MIN | 70-80PCS/MIN |

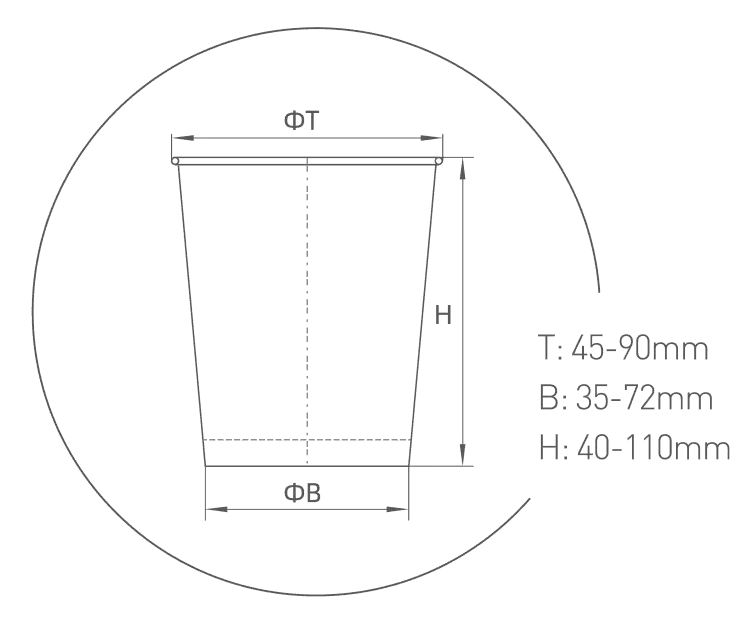

| PAPER CUP SIZE | 40-330ml(mold exchangeable) | 40-260(mold exchangeable |
| RAW MATERIAL | 140-250gsm One side PE film coated paper | |
| POWER SOURCE | 380V 3~Phase, 50HZ | |
| TOTAL POWER | 7KW | 7KW |
| TOTAL WEIGHT | G/N W: 2100/2000KG | 21000/2000KG |
| OVERALL DIMENSION | 2250X1300X1900mm | 2000x940x1900mm |
| Air Sourcess | No need air sourcess | |
PLC is used by the operating system to reduce button miscontact and fully automate artificial intelligence production. The assembly line is set up in such a way that computer chips can be produced automatically. The entire machine is mostly driven by a main motor to work, resulting in a perfect fusion of gear and CAM structure. PLC control manages the entire process of loading raw materials into the machine, milling blank panels and holes, cutting out chip boards, and slotting. The bottom paper feeding device is powered by an independent motor (PVC), which automatically cuts every scrap of paper into small pieces. This is a new method of cutting scrap paper that ensures the entire production process is automated.
