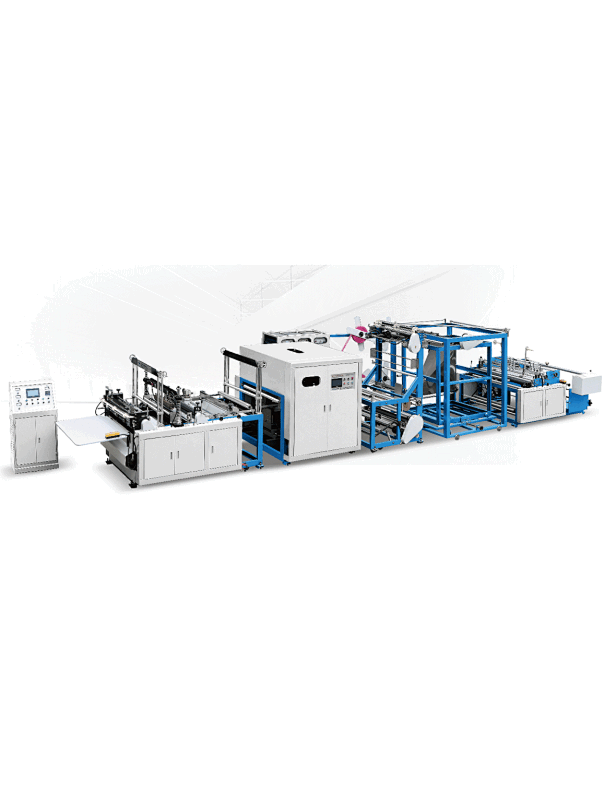

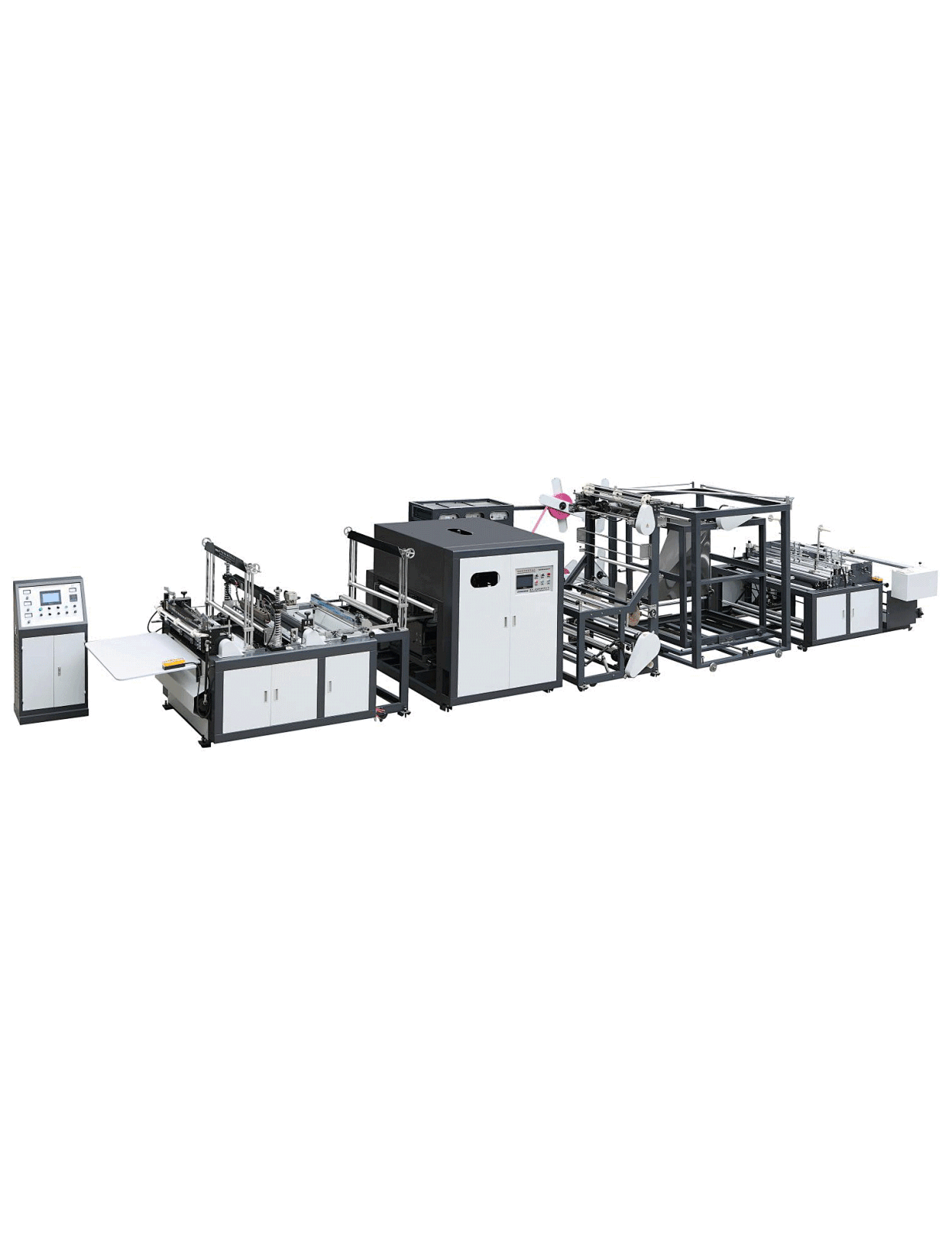

Non Woven Bag Manufacturing Machine
DCWZ-XC700/XC800
1
1. Full automatic non woven bag manufacturing machine, with loop handle online, and also able to makes other shape bags, like flat bags, vest bags, rope wearing bags.
2. Touch screen interface, able to control bag size & handle length.
3. High quality mechanical & electronic parts adopted to ensure stability & reliability. .
4. Separated unit structure, easy for maintenance.
5. Operator's safety is first concern of our design.
2. Touch screen interface, able to control bag size & handle length.
3. High quality mechanical & electronic parts adopted to ensure stability & reliability. .
4. Separated unit structure, easy for maintenance.
5. Operator's safety is first concern of our design.
Quantity
Technical Data:
Main Unit & Structure:
Machanical Details:
Electronic Details:
| SN | Item | XC700 | XC800 |
| 1 | Roller width | 1250mm | 1450mm |
| 2 | Bag making speed | 40-100pcs/min | 40-100pcs/min |
| 3 | Bag length | 100-800mm | 100-800mm |
| 4 | Bag Height | 200-580mm | 200-680mm |
| 5 | Max Gusset | 180mm | 180mm |
| 6 | Power supply | 220V 50Hz | 220V 50Hz |
| 7 | Total power | 20KW | 20KW |
| 8 | Rated power | 20KW | 20KW |
| 9 | Overall size | L 10000* W 2600* H 2000mm | L 10000* W 2600* H 2000mm |
| 10 | Weight of Machine | 3600KGS (40HQ*1) | 3600KGS (40HQ*1) |
| 11 | Handle length | 380-600mm | 380-600mm |
| 12 | Handle width | 25-30mm | 25-30mm |
