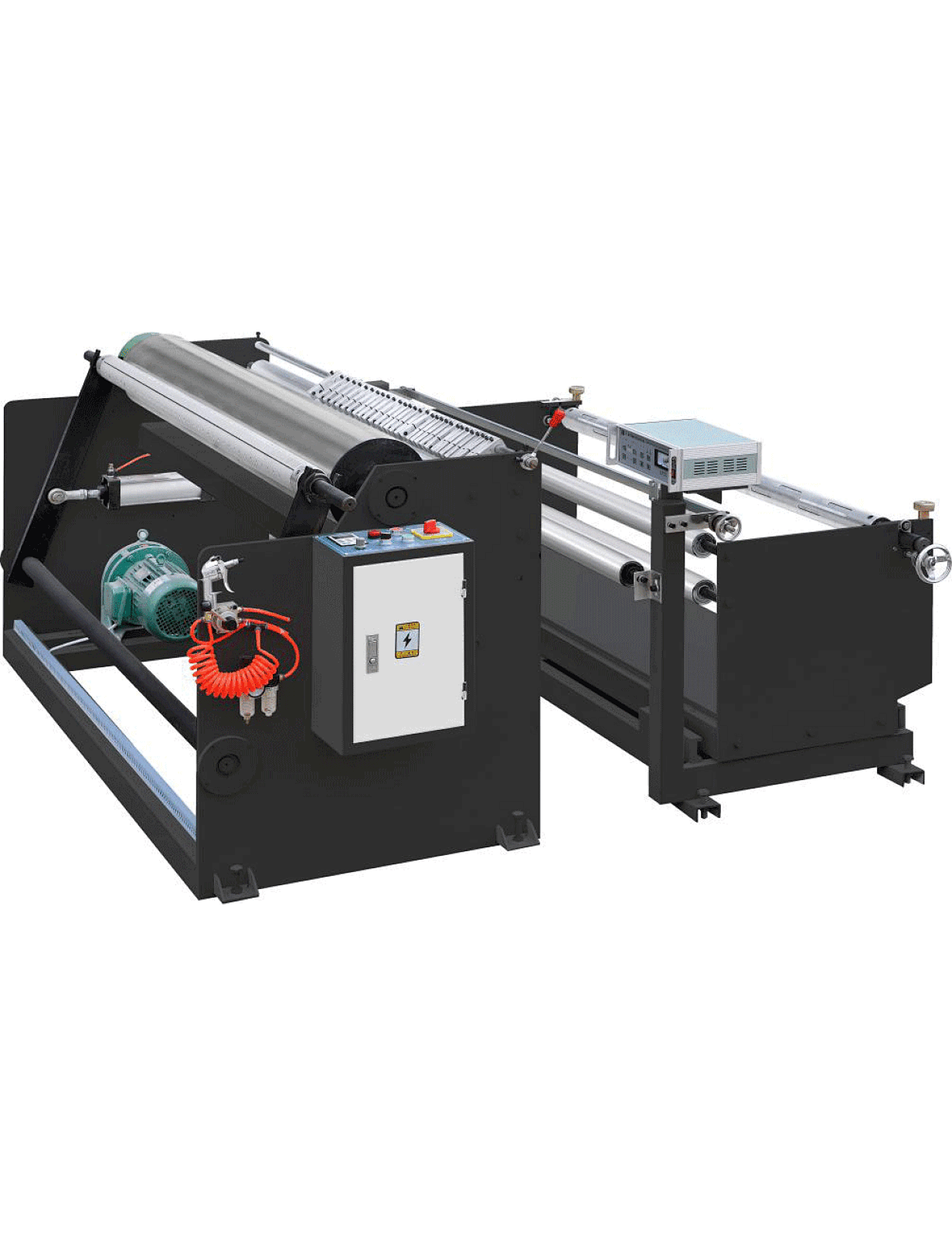

Non Woven Fabric Slitting Machine
DCWQ-XE1800
1
1. Big Roll to Small Roll slitting machine for non woven fabric.
2. Auto loading system save manpower.

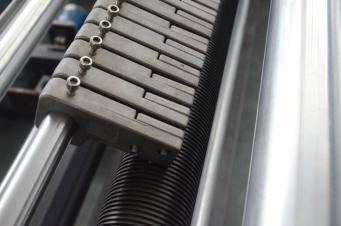

3. 30 sets of knives.

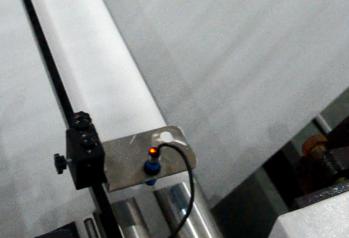

4. Auto deviation compensation system.
2. Auto loading system save manpower.
3. 30 sets of knives.
4. Auto deviation compensation system.
Quantity

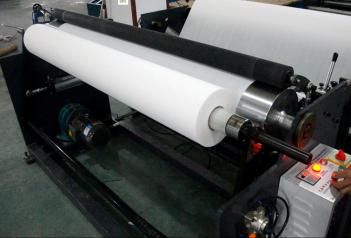

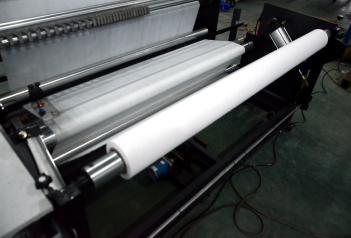

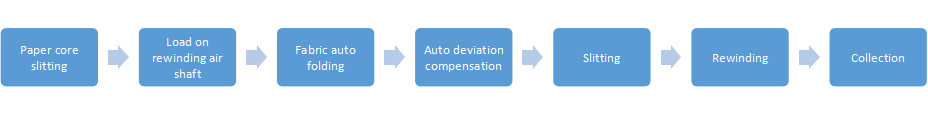

Nonwoven Febric Roll Slitting Procedure:

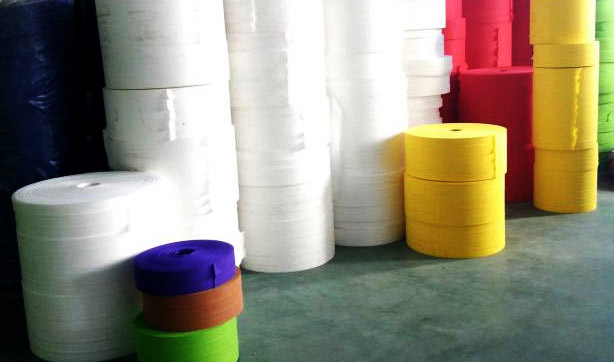

Products:
 |
Technical Data:
| Model | Item | Specification |
| 1 | Roller width | 25-1800mm |
| 2 | Slitting speed | 30-80m/min |
| 3 | Min slitting width | 25mm |
| 4 | Power supply | 220V 50Hz |
| 5 | Total power | 3KW |
| 6 | Rated power | 3KW |

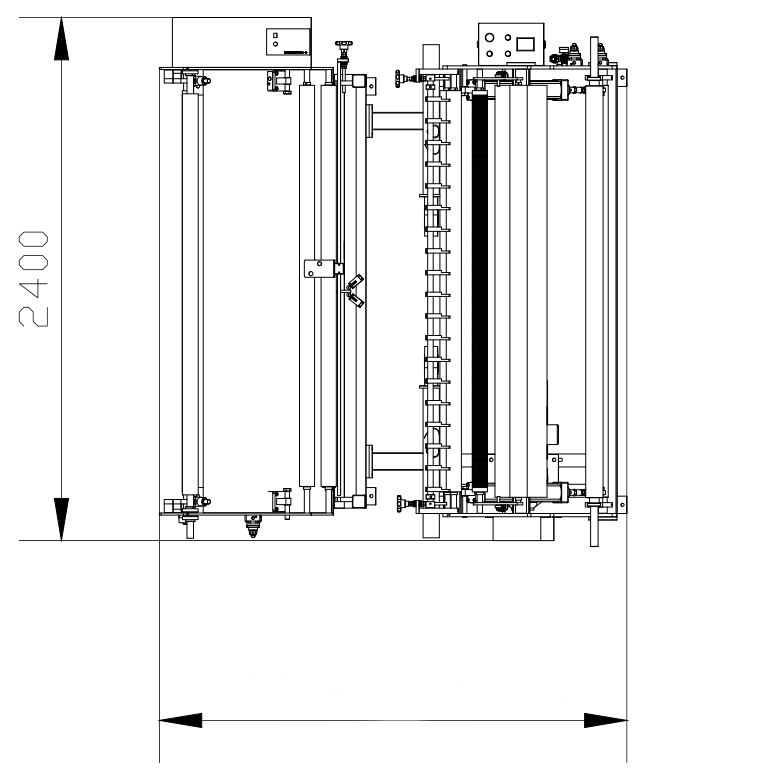

| 7 | Overall size | L 2400* W 1800* H 950mm |
| 8 | Weight of Machine | 650KGS (20HQ*1) |

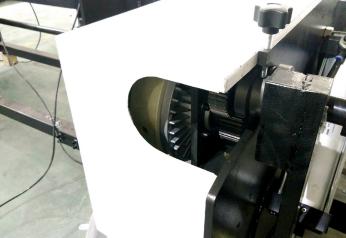

Details:
