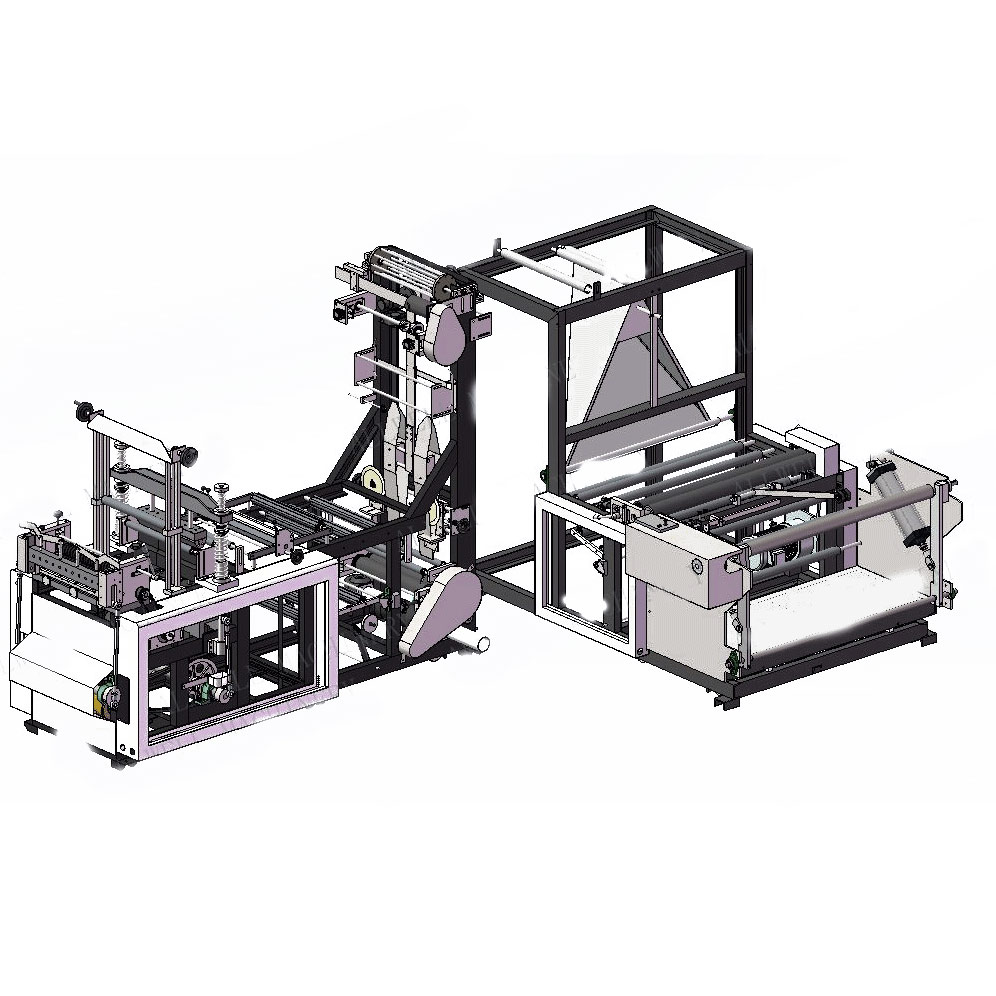

Non Woven U-cut Bag Manufacturing Machine
DCWZ-D500
1

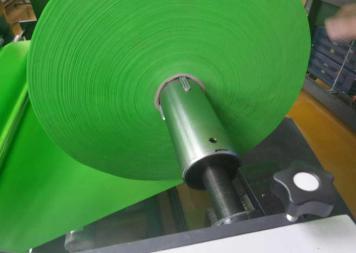

1. Roll Non Woven fabric feeding.
2. Speed up to 110 pcs of bags per minute.
3. Touch Screen control, easy adjust bag size.
4. U-cut non woven bag manufacturing machine.
2. Speed up to 110 pcs of bags per minute.
3. Touch Screen control, easy adjust bag size.
4. U-cut non woven bag manufacturing machine.
Quantity
High available, is you can rest assured the applicable quality environmental protection bag making equipment.
Machine Technical Data
Detail Pictures
Machine Technical Data
| SN | Item | Specification |
| 1 | MaxRoller width | 960mm |
| 2 | Bag making speed | 50-110pcs/min |
| 3 | Bag length | 100-500mm |
| 4 | BagWidth | 200-430mm |
| 5 | MaxGusset | 100-180mm |
| 6 | Fabric thickness | 18gsm-60gsm |
| 7 | Power supply | 220V 50Hz |
| 8 | Total power | 8KW |
| 9 | Rated power | 7KW |
| 10 | Overall size | L5200* W 1750* H 2100mm |
| 11 | Weight of Machine | 1500KGS (40HQ*4) |

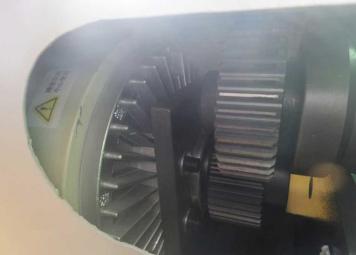

Detail Pictures
