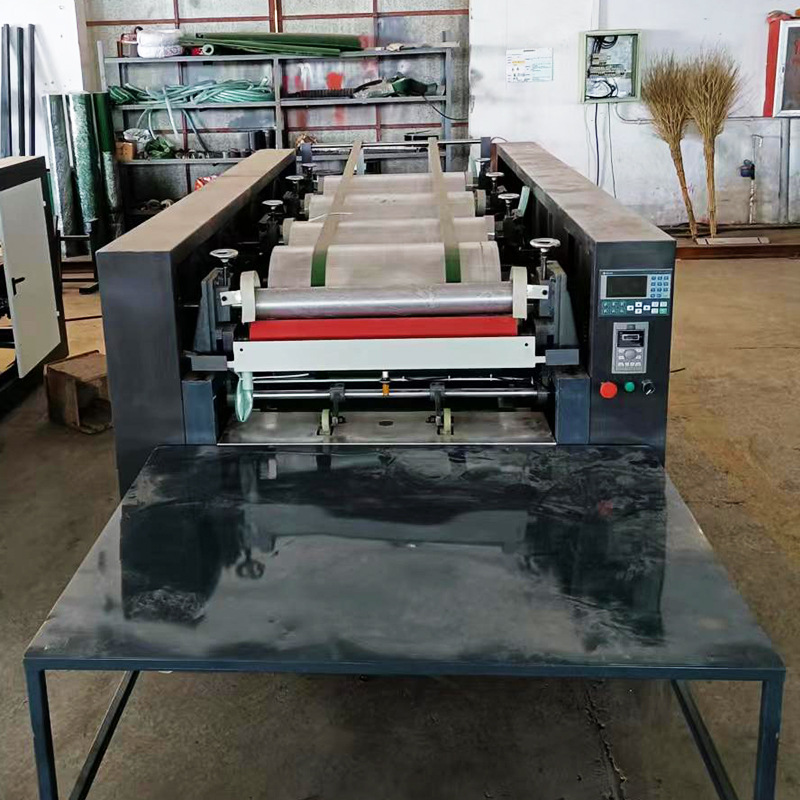

Offset Press For Pp Woven
SJ-FMF
1
1.Meter counter equipped with pre-alarming bell.
2.1500-3500p/h, step less governor.
3. Imported PVC Transmission belt, automatic positioning
4. Printing roller can be automatically tracing and separating
5. Oil leaking device can be replaced freely, oil-ink roller and offset can be separated and harmonized
6. Transferring oil-ink by roller, enhancing polished light for printing, saving oil-ink
7. Rear transmission can be delayed with the function of airing
8. High precision, the color overprint
2.1500-3500p/h, step less governor.
3. Imported PVC Transmission belt, automatic positioning
4. Printing roller can be automatically tracing and separating
5. Oil leaking device can be replaced freely, oil-ink roller and offset can be separated and harmonized
6. Transferring oil-ink by roller, enhancing polished light for printing, saving oil-ink
7. Rear transmission can be delayed with the function of airing
8. High precision, the color overprint
Quantity
Relief Offset Press For Pp Woven Sack Performance and Characteristics：
This machine is used for printing letters, figures and trademarks on plastic woven bags with two-or three color chromatography.
This assembly goes with automatic counting and flashed fine tuning and does automatic printing with photocell control.
Main Technical parameters
This machine is used for printing letters, figures and trademarks on plastic woven bags with two-or three color chromatography.
This assembly goes with automatic counting and flashed fine tuning and does automatic printing with photocell control.
Main Technical parameters
| Item/Type | Max.input width(mm) | Max.printing width(mm) | Max.printing length(mm) | Thickness of rubber relief printing plate(mm) | Diameter of printing ruller(mm) | Printing capacity (pcs/h) | Printing color number | Power motor(kw) | Installing dimebsuibs ( L×W×H)(mm) | Weigth approx(kg) |
| S-ZD-800ⅡB | 800 | 600 | 1200 | 4 | 480 | 1000-2000 | 2 | 1.5 | 2700x1400x1300 | 1500 |
| S-ZD-800ⅢB | 800 | 600 | 1200 | 4 | 480 | 1000-2000 | 3 | 2.2 | 3400x1400x1300 | 2000 |
| S-ZD-1300ⅢB | 1300 | 1100 | 1800 | 4 | 600 | 500-1000 | 3 | 4 | 4500x2000x1500 | 2500 |
