Paper Lid Machine
DCPL
1

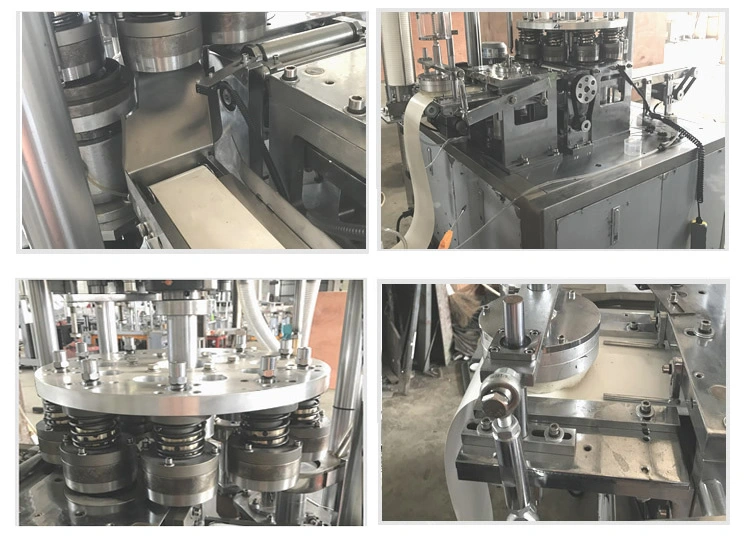

1. The most recent contemporary technologies are included in this fully automated, self-sufficient machine to improve efficiency and accuracy. The entire process, including paper feeding, bowl-fan wall sealing, oil and silicon lubrication, bottom punching, heating, rolling, rimming, rounding, and discharge, is completed by this machine. Auto feeding, creasing, molding, heating, folding, and knurling are also covered.

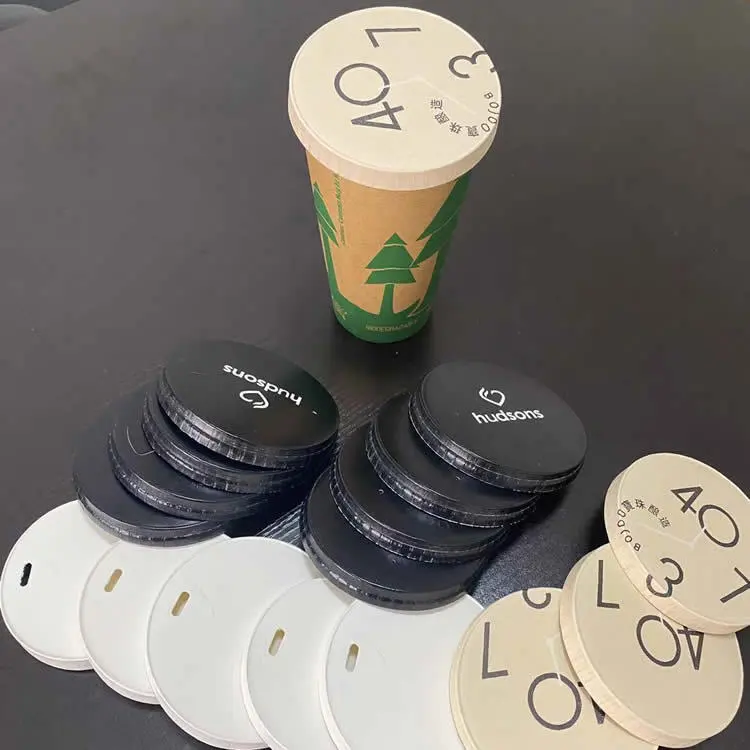

2.Round, straight-walled paper lids are made using DCPL145. precise fit for the corresponding application. the two types of stackables To provide your customers with a comprehensive paper-based solution is the ideal complement to cup or container packaging.
3. The newest generation of lidding machines, the DCLP03/04, is known for its high output, exceptional fitting accuracy, and stability of closure. It produces very dimensionally stable lids with closure beading that are perfectly adapted to the cup or container packaging using tried-and-true paper cup technology.

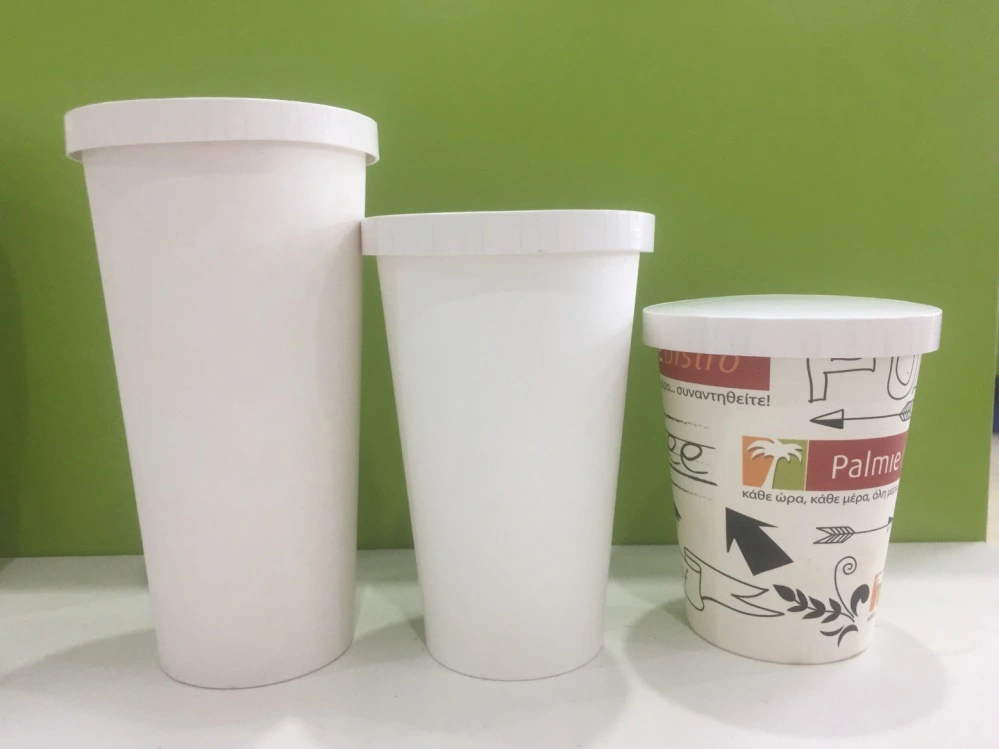

The TINUO-branded lids machine make a frame that is slightly flared and are appropriate for hot and cold beverage cups as well as packaged cups.
2.Round, straight-walled paper lids are made using DCPL145. precise fit for the corresponding application. the two types of stackables To provide your customers with a comprehensive paper-based solution is the ideal complement to cup or container packaging.
3. The newest generation of lidding machines, the DCLP03/04, is known for its high output, exceptional fitting accuracy, and stability of closure. It produces very dimensionally stable lids with closure beading that are perfectly adapted to the cup or container packaging using tried-and-true paper cup technology.
The TINUO-branded lids machine make a frame that is slightly flared and are appropriate for hot and cold beverage cups as well as packaged cups.
Quantity

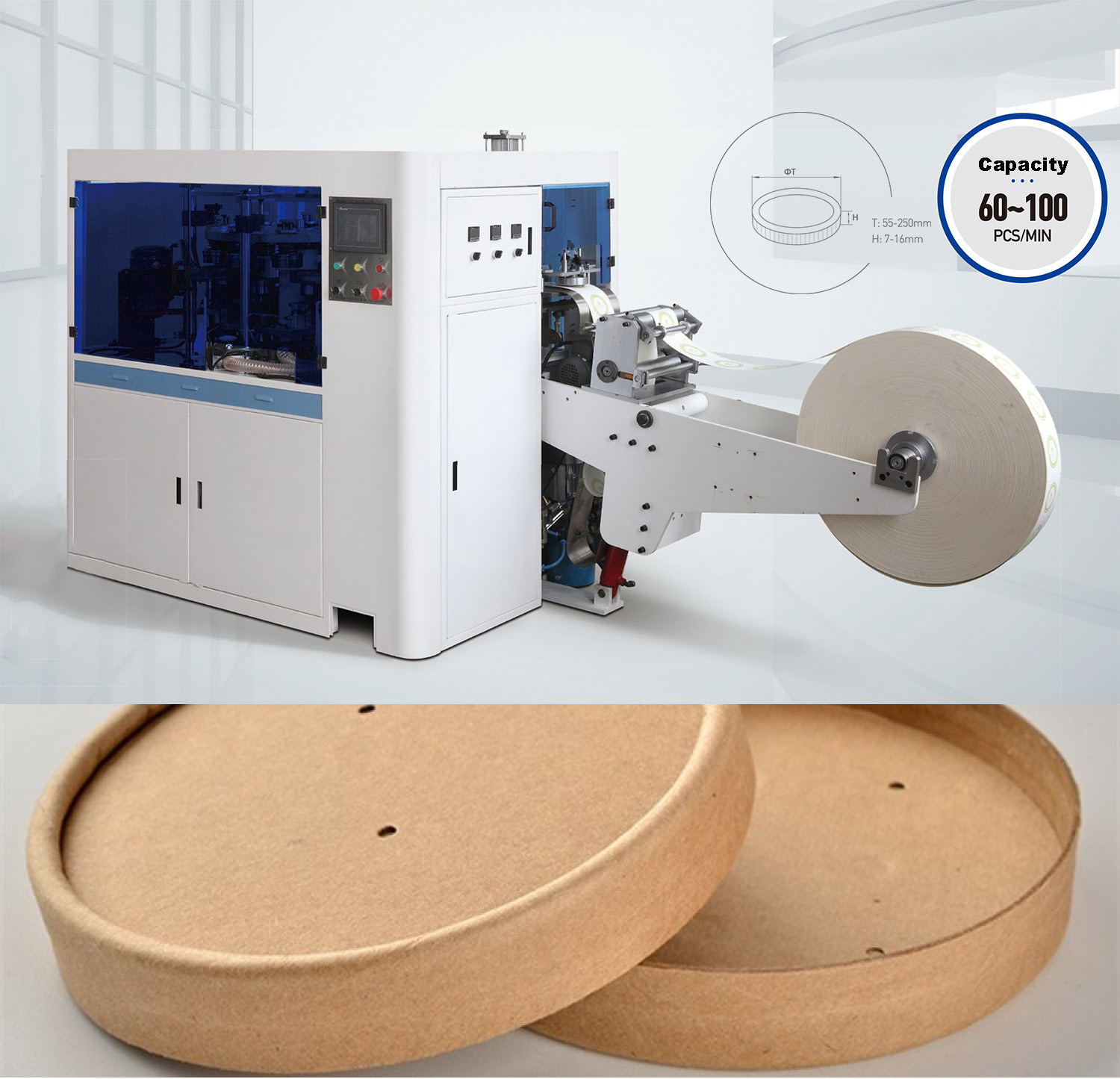

Our company independently developed the DCPL145 Full Automatic Roll Paper Cover Forming Machine, which has since been extensively improved to increase the stability of the entire machine.
| TECHNICAL PARAMETER | ||||
| MODEL | 145 (Roll Feeding) | 145 (Sheet Feeding) | 200 | 145 Leader / PL02 |
| LID HEIGHT | 7-15mm | 7-15mm | 12-16mm | 7-15mm |
| LID DIAMETER | 55-142mm | 55-135mm | 145-250mm | 55-122mm |
| MATERIAL | 240-480g/m2 Single or double PE coated paper/ Polished coated paper / PLA coated paper. | |||
| MATERIAL THICKNESS | 0.32-0.55mm | |||
| SPEED | 60-100pcs/min | 45-80pcs/min | 70-100pcs/min | 80-120pcs/min |
| WEIGHT | 2800kg | 2800kg | 3000kg | 2800kg |
| OVERAL DIMENSION | 3250x1200x1850mm | 3250x1200x1850mm | 3250x1500x1850mm | 3400x1400x2050mm |
| TOTAL POWER | 12KW | |||
| WORKING AIR SOURCE | Air pressure: 0.4MPa; Air output:0.1m3/min | |||
DCLP03/04 The TINUO-branded lids machine make a frame that is slightly flared and are appropriate for hot and cold beverage cups as well as packaged cups.
| TECHNICAL PARAMETER | ||
| MODEL | PL-03 | PL-04 |
| LID DIAMETER | 60-115mm | 120-185mm |
| LID HEIGHT | 17mm | 17mm |
| LID CURLING | 3mm | 3mm |
| SPEED | 50-80pcs/min | 50-80pcs/min |
| WEIGHT | 480kg | 480kg |
| DIMENSION | 2840x1350x1900mm | 3225x1700x1900mm |
