Plastic Lid Forming Machine
DC-420
1

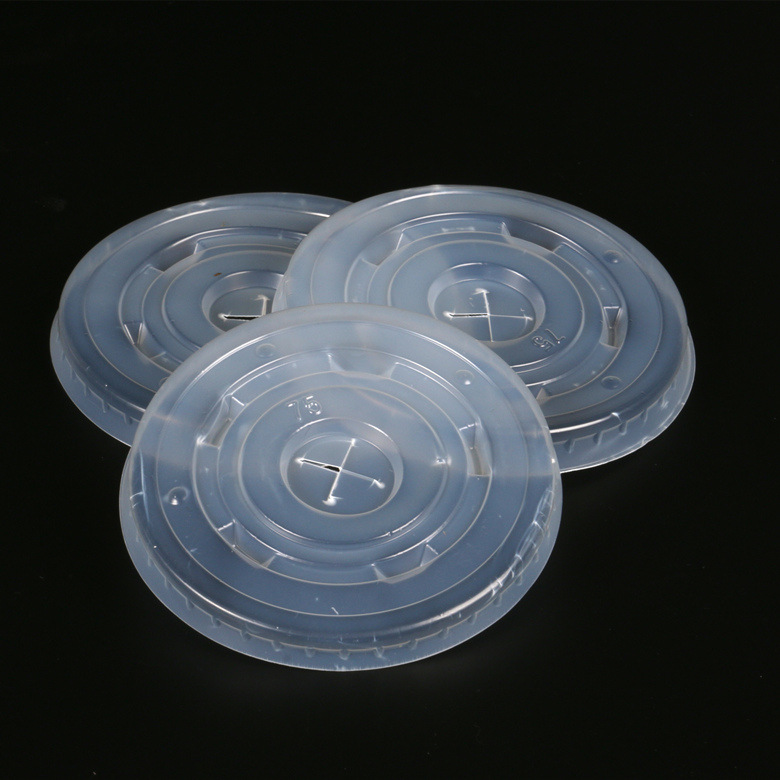

Modern technology and straightforward operation guarantee the plastic cup lid's production quality. Forming, punching, more punching, fully automatic transportation, and other steps have all been taken during the entire production process. Plastic sheets are formed into plastic cup lids of different sizes and shapes using the plastic lid forming machine (also known as the cup bowl lid making machine). A paper cup maker, a paper bowl maker, etc. can be paired with the plastic cover maker.
The BOPS, HIPS, PS, PVC, PET, PLA, and other plastic sheet moldings are processed by the plastic bowl cup making machine in large quantities. It is a production tool for plastic packaging products with multiple uses. For instance, plastic milk tea covers, coffee covers, cake boxes, oral liquid trays, and many other products.
An automatic integrated thermoforming machine creates plastic cup lids. It is capable of completing each step of feeding, heating, forming, punching, and punching all at once. The die-cut sheets are collected by a recycling device, and the die-cut lids are then collected by conveying. Thermoforming is used to create the pattern on the sheet from the mold.
The BOPS, HIPS, PS, PVC, PET, PLA, and other plastic sheet moldings are processed by the plastic bowl cup making machine in large quantities. It is a production tool for plastic packaging products with multiple uses. For instance, plastic milk tea covers, coffee covers, cake boxes, oral liquid trays, and many other products.
An automatic integrated thermoforming machine creates plastic cup lids. It is capable of completing each step of feeding, heating, forming, punching, and punching all at once. The die-cut sheets are collected by a recycling device, and the die-cut lids are then collected by conveying. Thermoforming is used to create the pattern on the sheet from the mold.
Quantity
Plastic Lid Forming Machine
| Parameter | ||
| Model | 420 | 420s |
| Max Forming Area | 410x150mm | 410x320mm |
| Material | 0.15-0.55mm(HIPS,PET,PS,PCS,PVC) | |
| Film Width | Max Reel Width:430mm | Max Reel Width:430mm |
| Punching Speed | 8~32 Beats/minute | 8-30 beats/minute |
| Max Forming Depth | 30mm | 55mm |
| Move Stroke Rage | 30-160mm | 30~160mm |
| Power | 4.6KW | 6KW |
| Power Source | 380V 3-phase 50Hz | |
| Weight | GW/NW: 1000KGS/800KGS | 1200KG/1000KG |
| Pack Size | 2300X1000X1900mm | 2450x1000x2000mm |
| Needed Water Source | Water Pressure: 0.2MPa; Water-input: 0.3M3/Hour | |
| Needed Air Source | Air Pressure:0.5-0.7 MPa; Air input: 20.2m3/minute | Need to buy Air Compressor |
