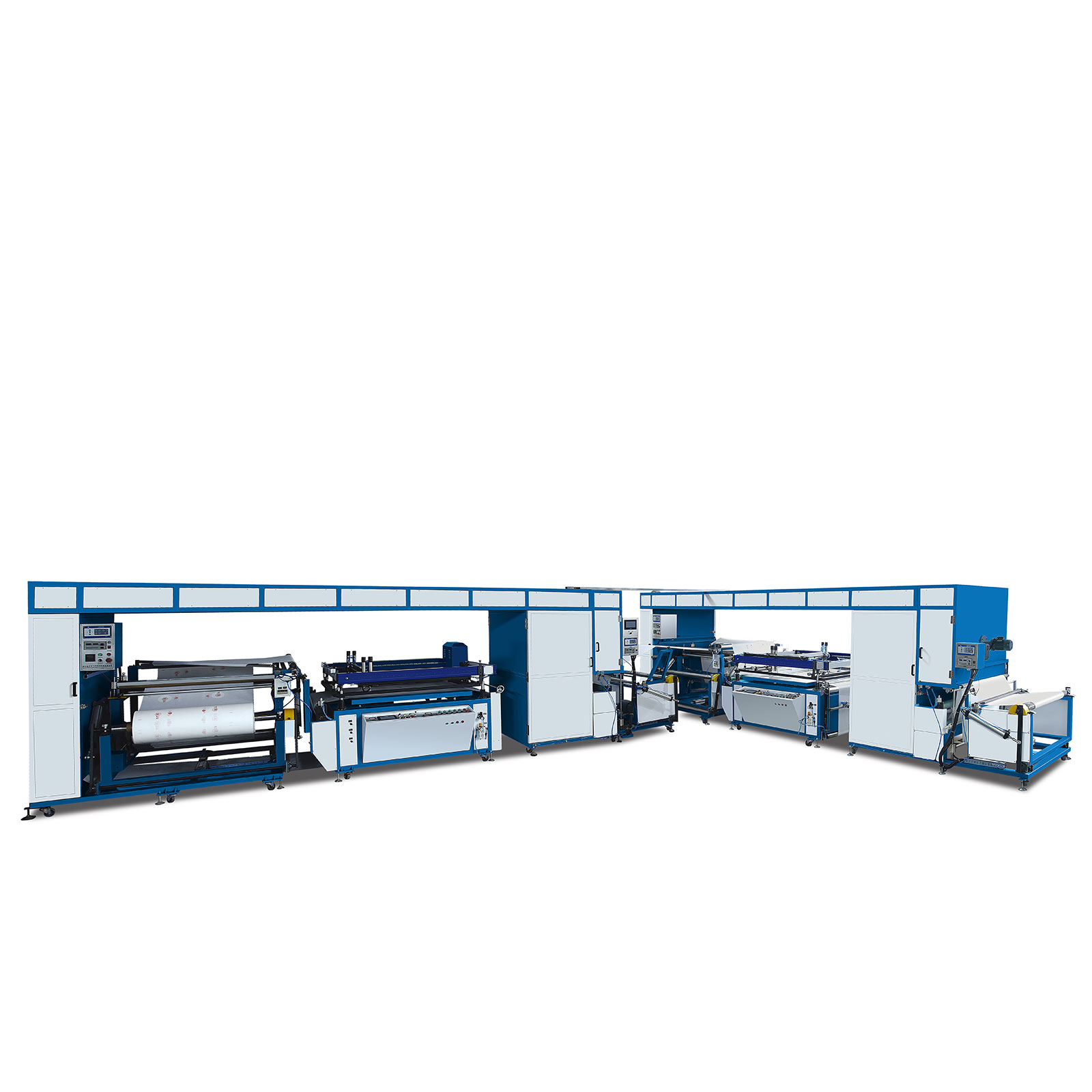

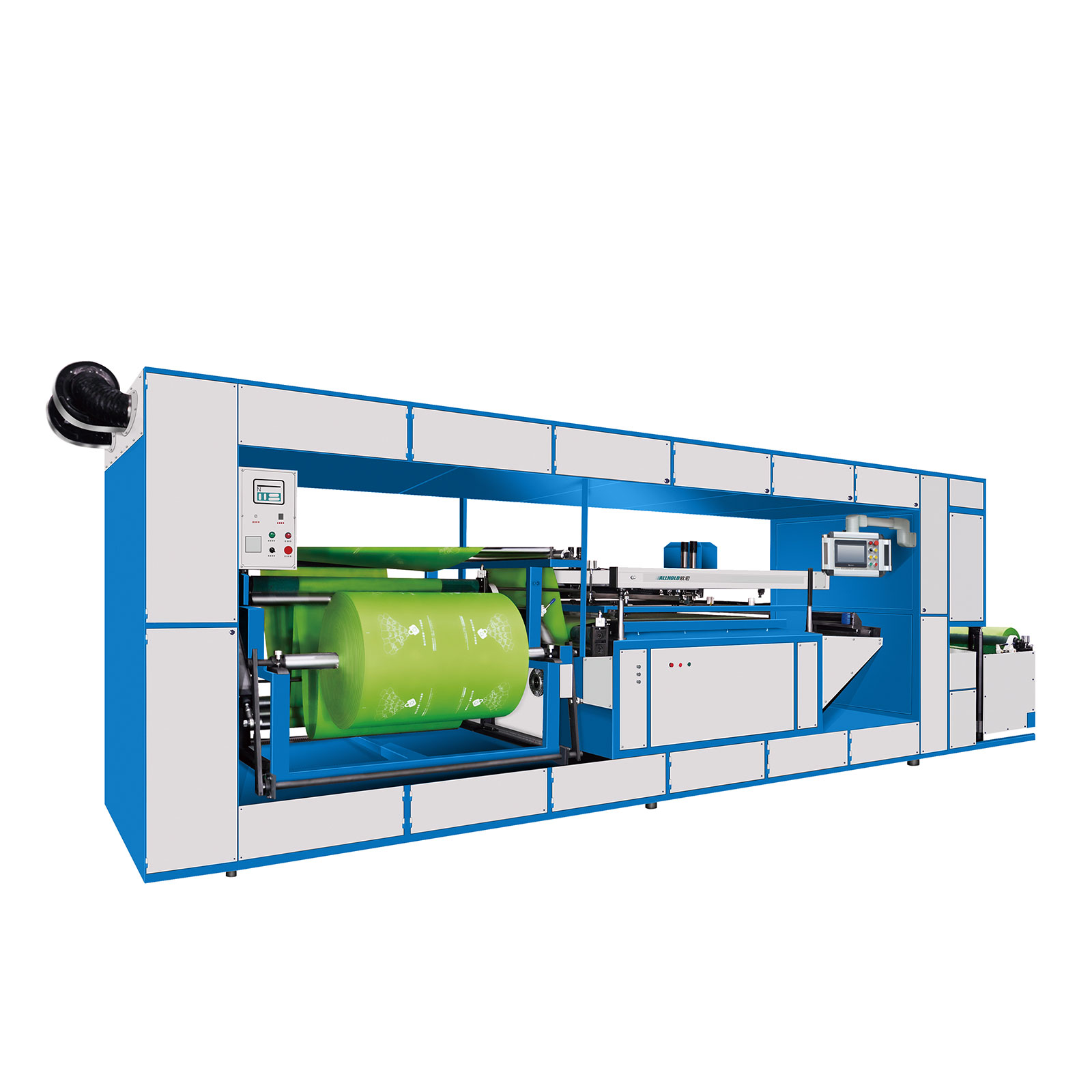

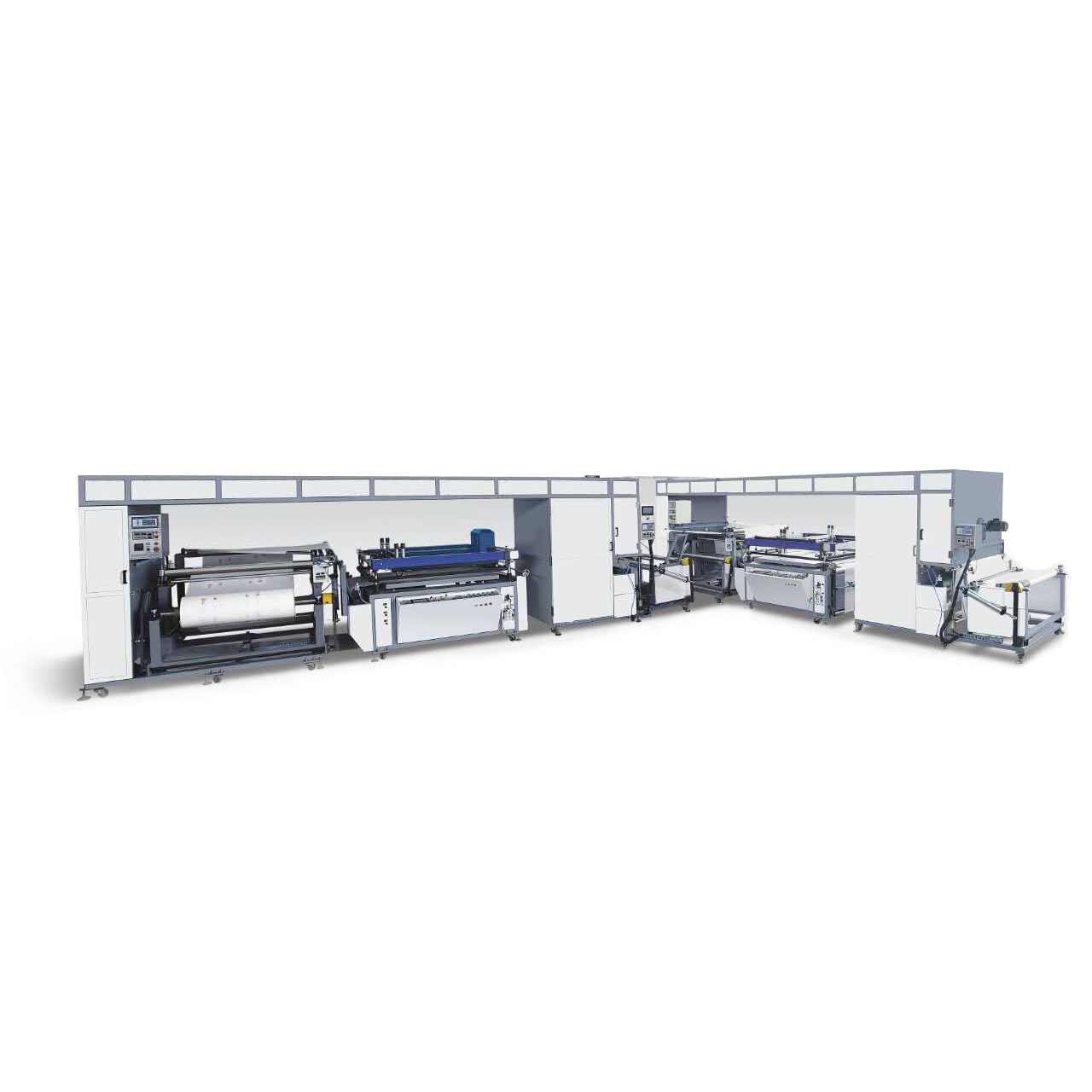

Non Woven Roll to Roll Screen Printing Machine
DCWY-1400I / 1400II
1
1. Roll to Roll Screen Printing one color is easy, two color sammeld ruck need high precision.
2. It's for non woven roll fabric pre-print, before being used on one woven bag making machine.
3. Greatly saved non woven bag making process flow at best costs.
4. Suitable for above 45gsm non woven fabric high quality printing.
2. It's for non woven roll fabric pre-print, before being used on one woven bag making machine.
3. Greatly saved non woven bag making process flow at best costs.
4. Suitable for above 45gsm non woven fabric high quality printing.
Quantity

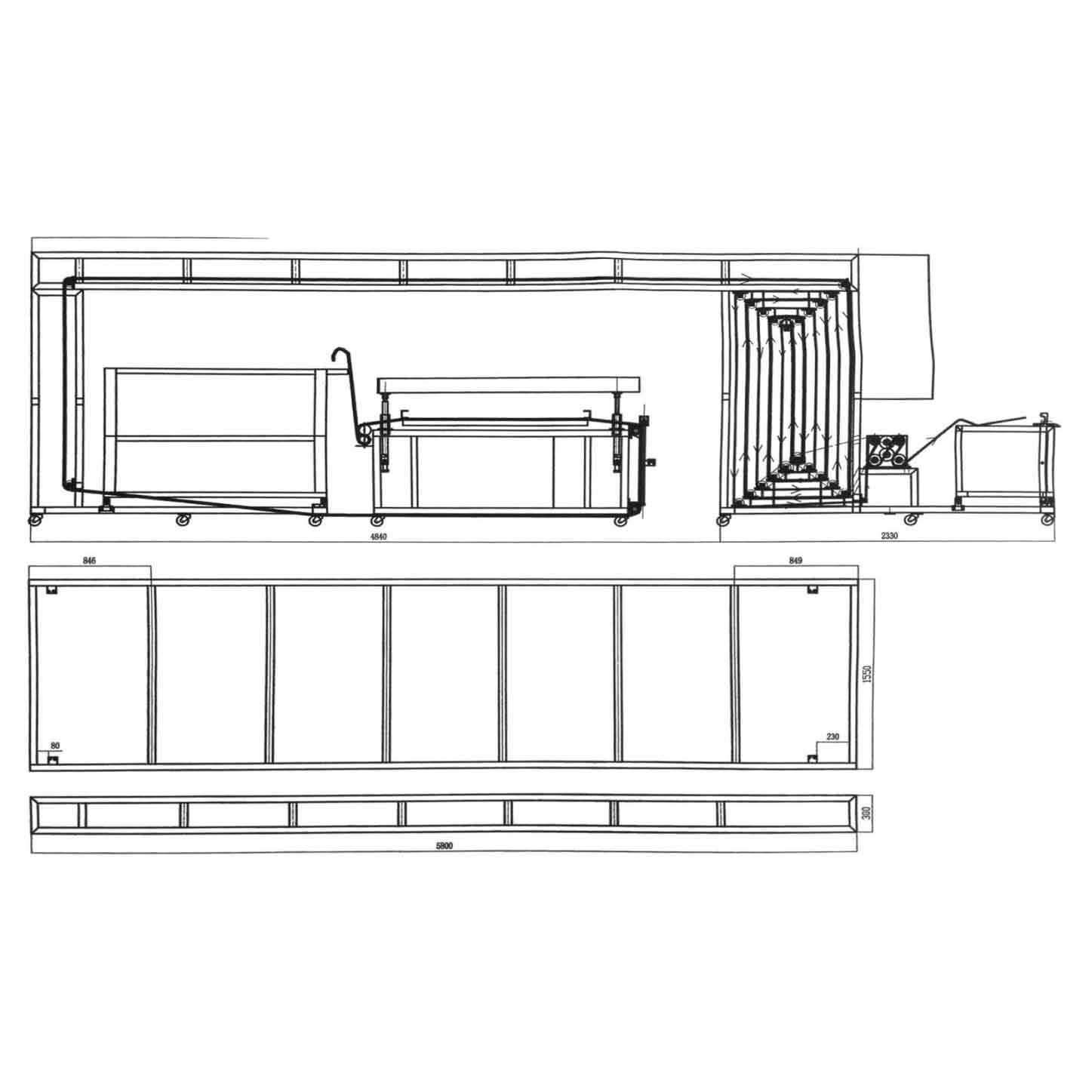

Roll to Roll Screen Pringting Machine Process flow:
Printing Effect
Machine characteristics
1. Technical Data
| SN | Item | Specification |
| 1 | Max printing size | 1200x1100mm |
| 2 | Non woven fabric roll width | 1250 mm |
| 3 | Non woven fabric thickness | 45-100gsm |
| 4 | Max diameter of roller | 800 mm |
| 5 | Printing speed | 800-1500 m/h |
| 6 | Power supply | 380V 3P4N |
| 7 | Total power | 28KW |
| 8 | Rated power | 15KW-25KW |
| 9 | Overall size | L7500* W 1800* H 2300mm |
| 10 | Weight of Machine | 3500KGS (40HQ*1) |

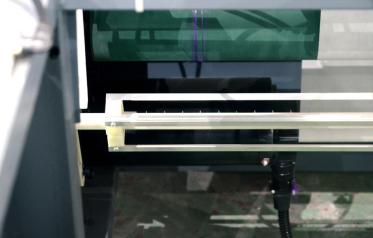

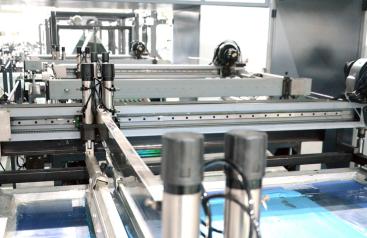

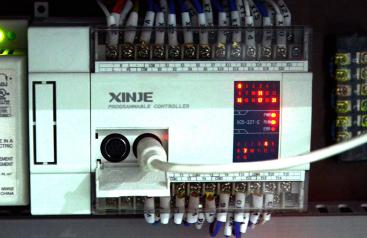

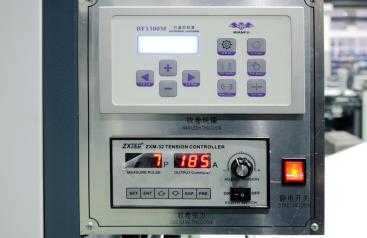

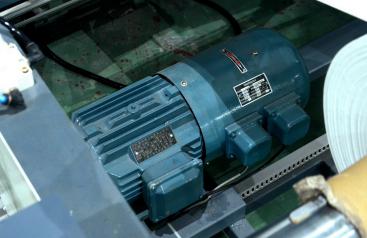

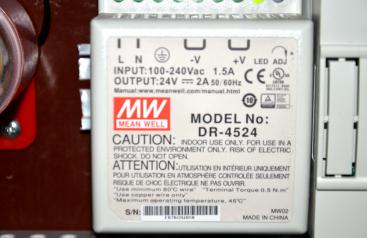

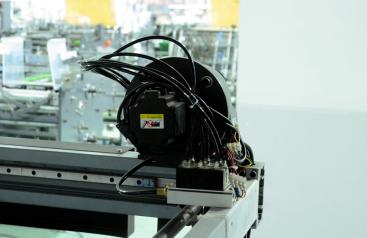

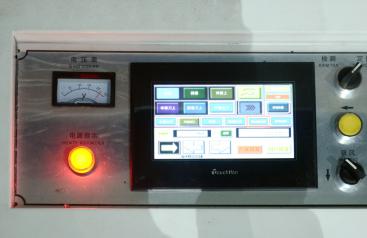

2. Details
