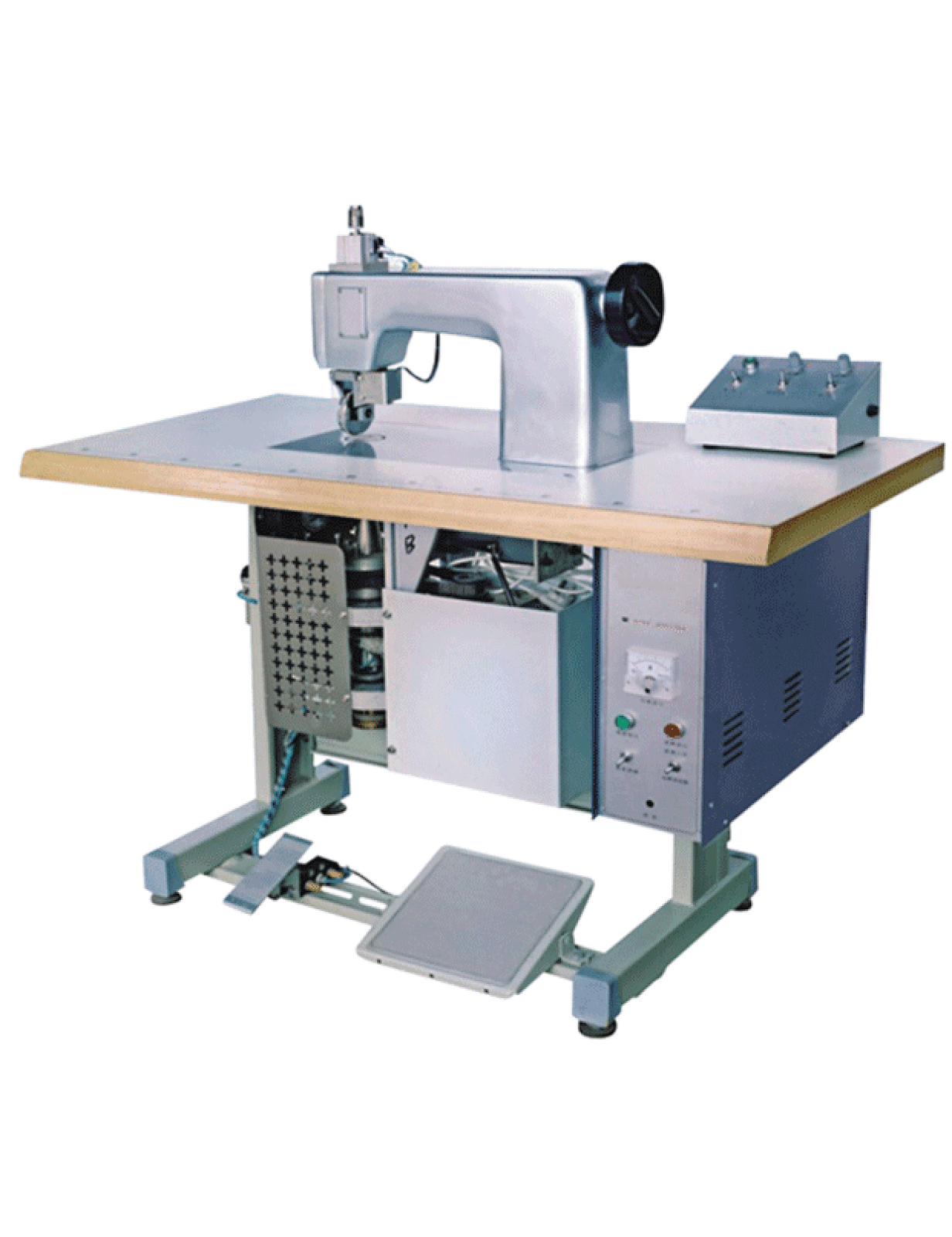

Ultrasonics Sewing Machine
DCWH-USM
1
Tinuo High quality ultrasonic sewing machine manufacturers, Safe and easy to operate; It can be fused in straight line and arc. It can meet the waterproof, sealing, antibacterial and other functional requirements of the fused products.
Quantity
1. Machine characteristics
1.Sample
Ultrasonic Sewing Machine used for manual welding or sealing of side or mouth of non woven bags,
Usually used for sample bag making before bulk production in automatic machine.
3. Machine Technical Data
| SN | Item | Specification |
| 1 | Output | 0-18 m/min |
| 2 | Working frequency | 20 KHz |
| 3 | Output frequency | 1.5 kw |
| 4 | Effective breadth | 10 mm |
| 5 | Equipped pattern mould | 12mmxØ51mm; 50mmxØ51mm |
| 6 | Power supply | 220V±5V 50HZ |
| 7 | Overall size | 1250x610x1280 mm |
| 8 | Weight | 140 kg |
