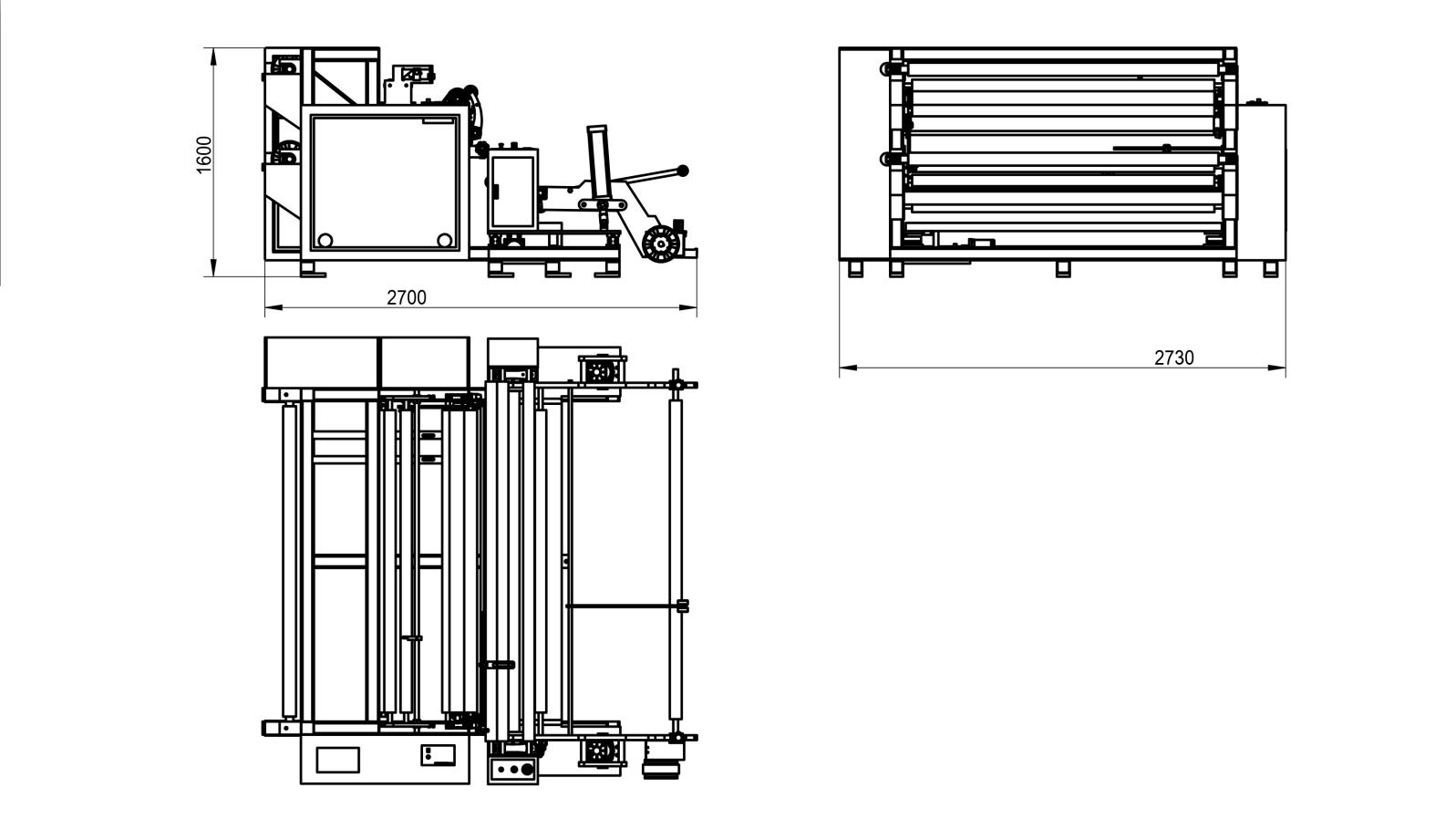

1. Schematic diagram

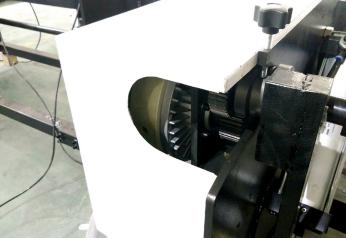

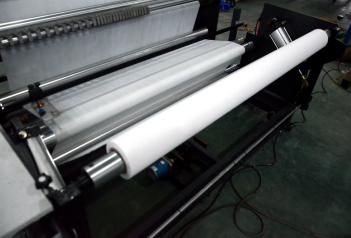

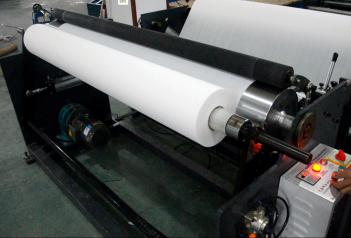

- NonwovenSlitting Procedure
- Fabric samples:

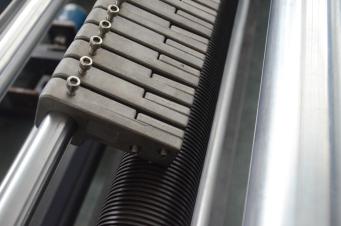

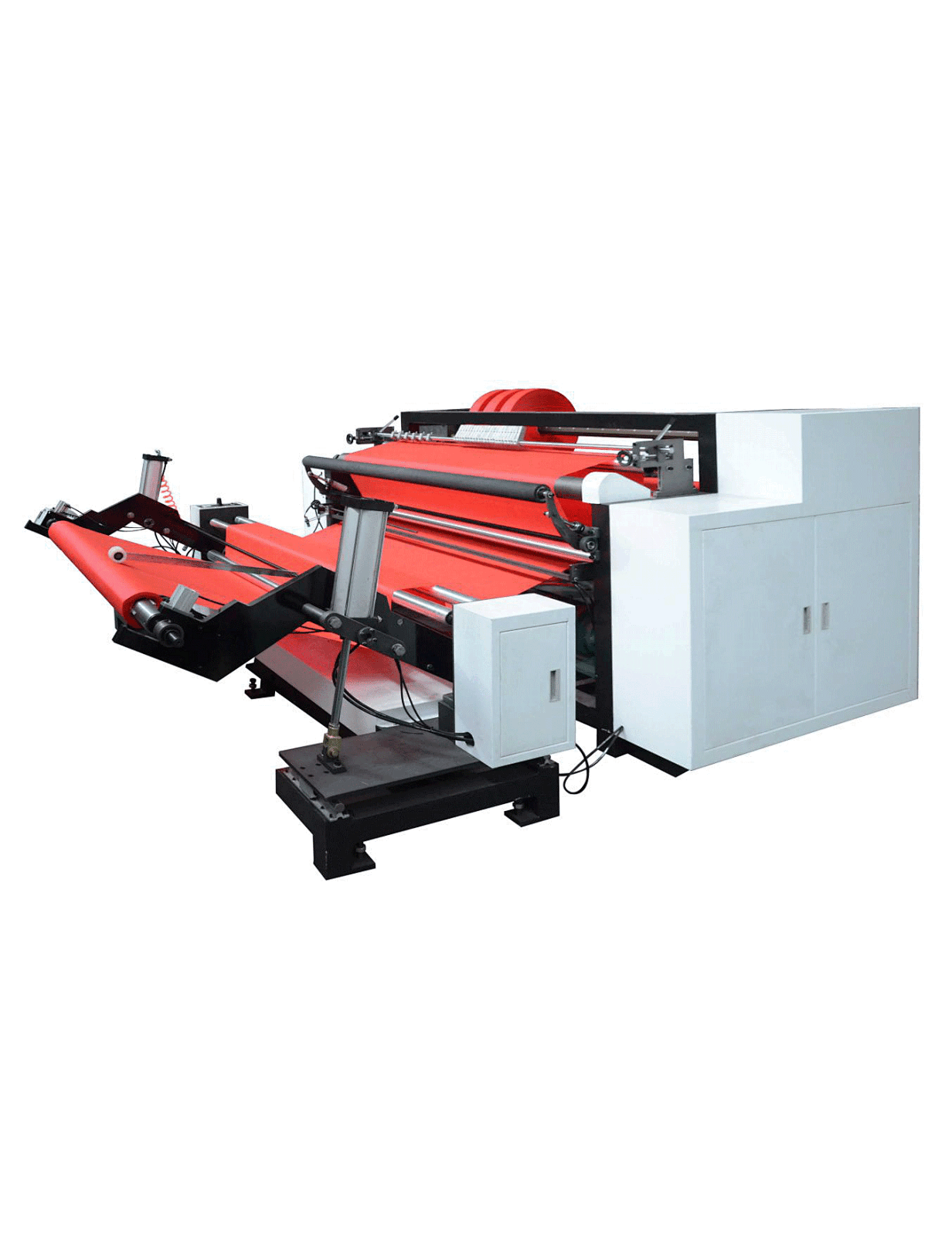

This machine is for non woven fabric slitting, automatic loading the raw material and slitting the non woven fabric into different width roll by roll . Standard with 30 sets knives can change site and minute slitting width 25mm. Machine with Automatic correct deviation system and magnetic tension controller. It can give you strong support of bag and handle feeding material.
2. Machine Technical Data
|3||Min slitting width||25mm|
|4||Power supply||220V 50Hz|
|7||Overall size||L2400* W 1800* H 950mm|
|8||Weight of Machine||1500KGS (20HQ*1)|
3.Main equipment and Description
|2||Rewinding Unit||Max diameter 800mm|
|3||Roll feeding||Auto tension control, centralization-|
|5||Roller control device||φ3″（φ76mm）Air Shaft|
|6||Roller control device||Mangentic power tension|

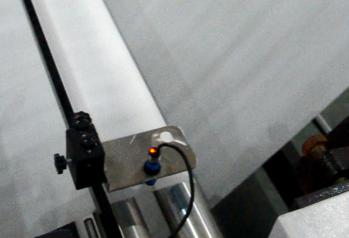

|7||Correcting deviation device||Automatica EPC syestem|
- Free Spare parts
- Attachment 1 – Spare parts for free
- Attachment 2 – Spare parts we suggest to buy
The seller will send 1 engineer to install, test the production line and train customers’ workers in buyers’ factory. It will take 12 days for whole installation and training.
Thebuyer should cover engineers’ salary, visa cost, Round air tickets, accommodations, transportation in buyers’ country, food, medical care, safety cost, and related cost happens in buyers’ country. Also, the buyer should prepare enough labor, electric wire outside the control panel and tools for installations.
Warranty period for the delivered equipment will be 12month after completion of erection but not later than 18months after shipment. In case any item proves to be defective and the damage is confirmed by seller’s technicians within this period, the seller will at their choice either send engineer to repair or supply a new one for replacement free of charge on the basis of CNF delivery.
The above item does not include the parts, which have regular spares or the parts damaged from normal wear, abnormal operation, improper maintenance and inadequate civil works. The seller is not liable for any production loss under any circumstances.
As per export standard, they will also be treated before delivery against damage and rusting.
